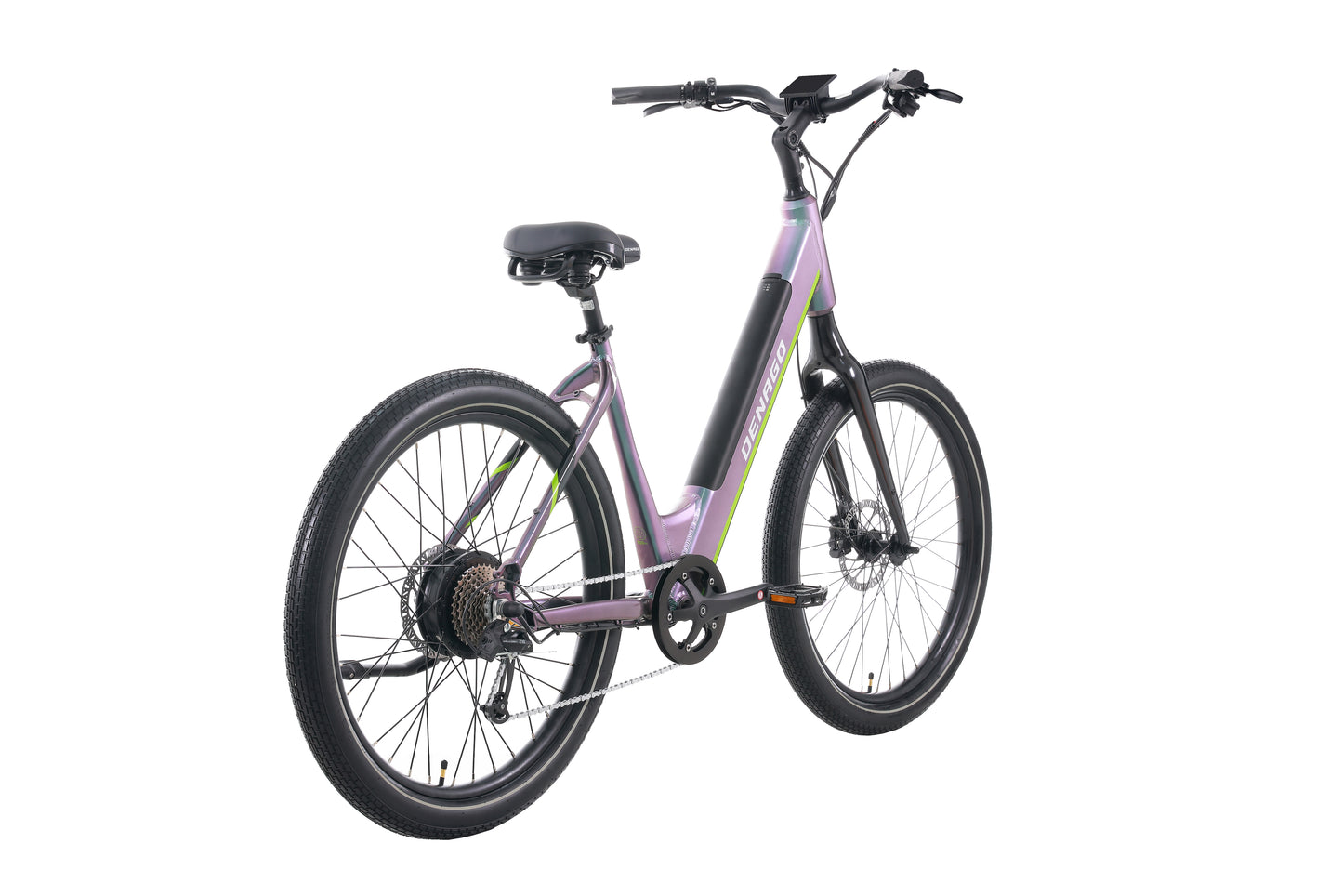

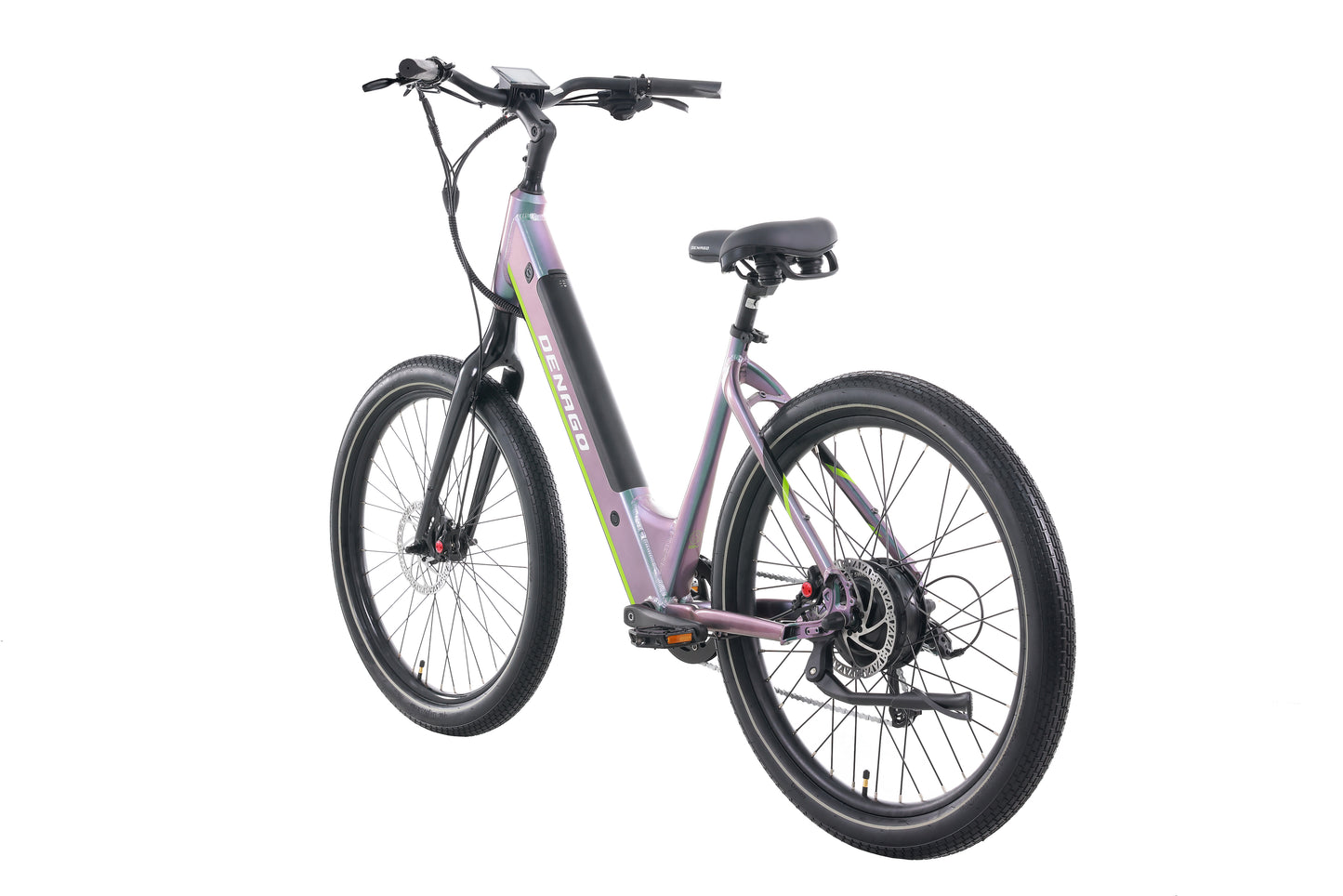

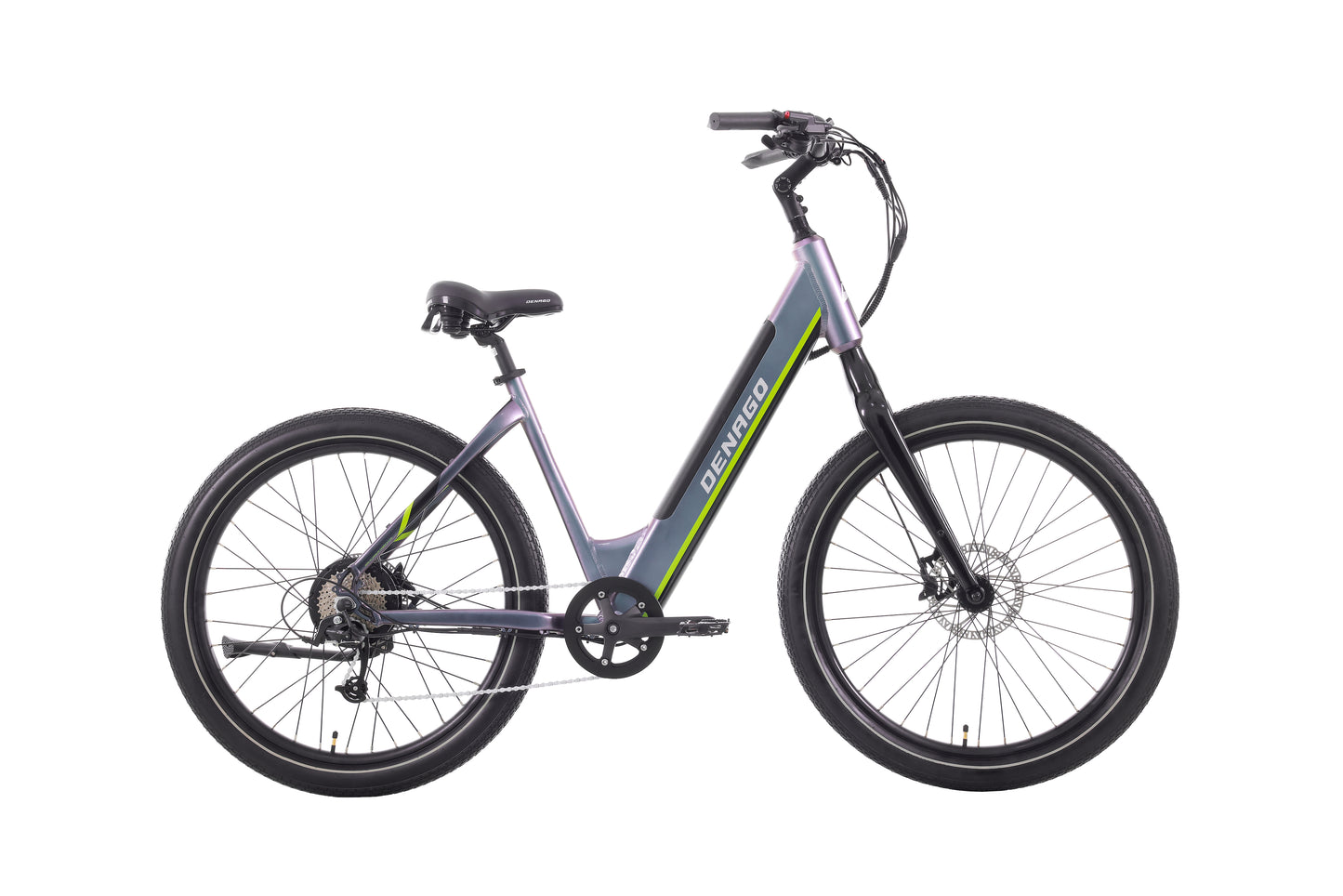

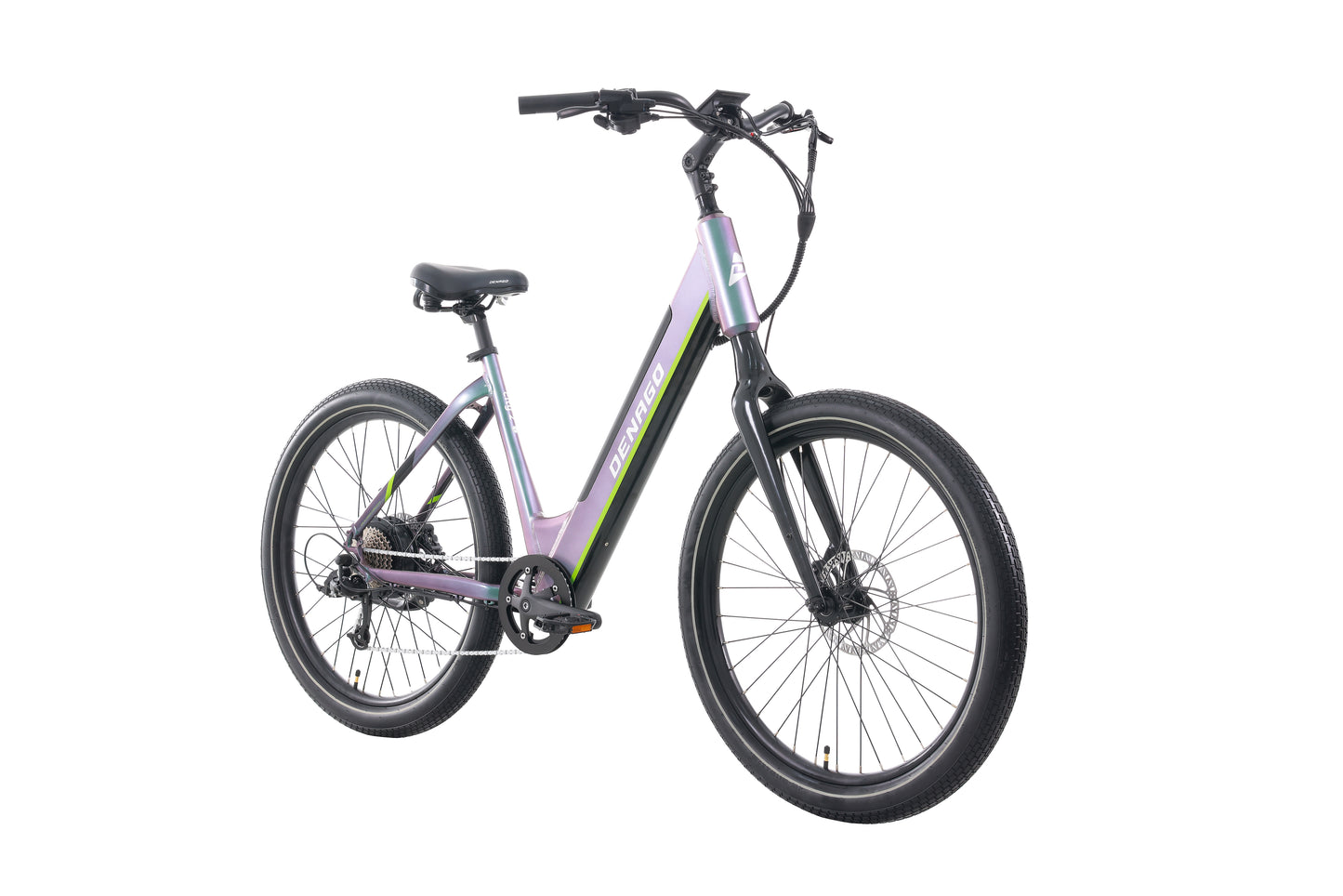

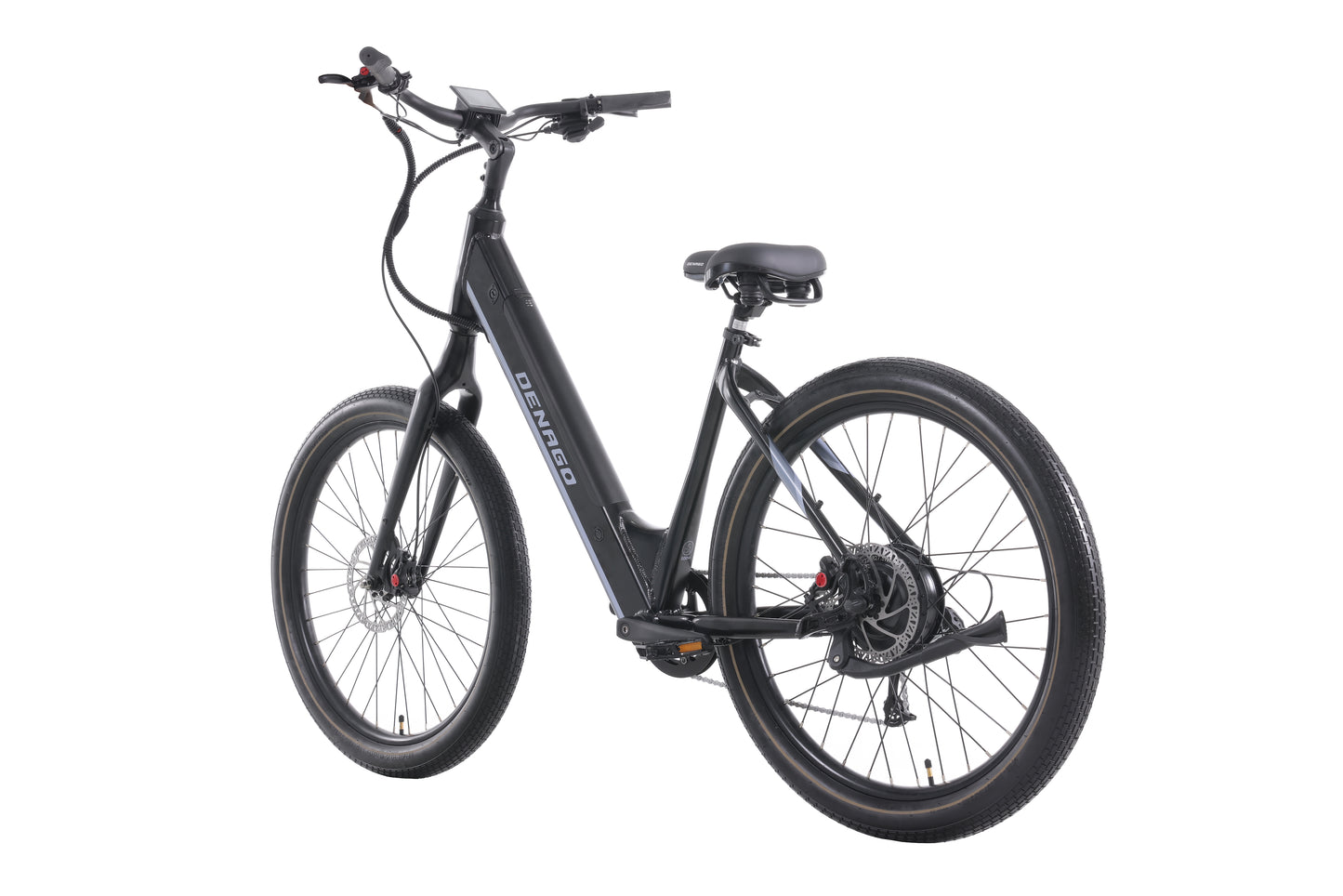

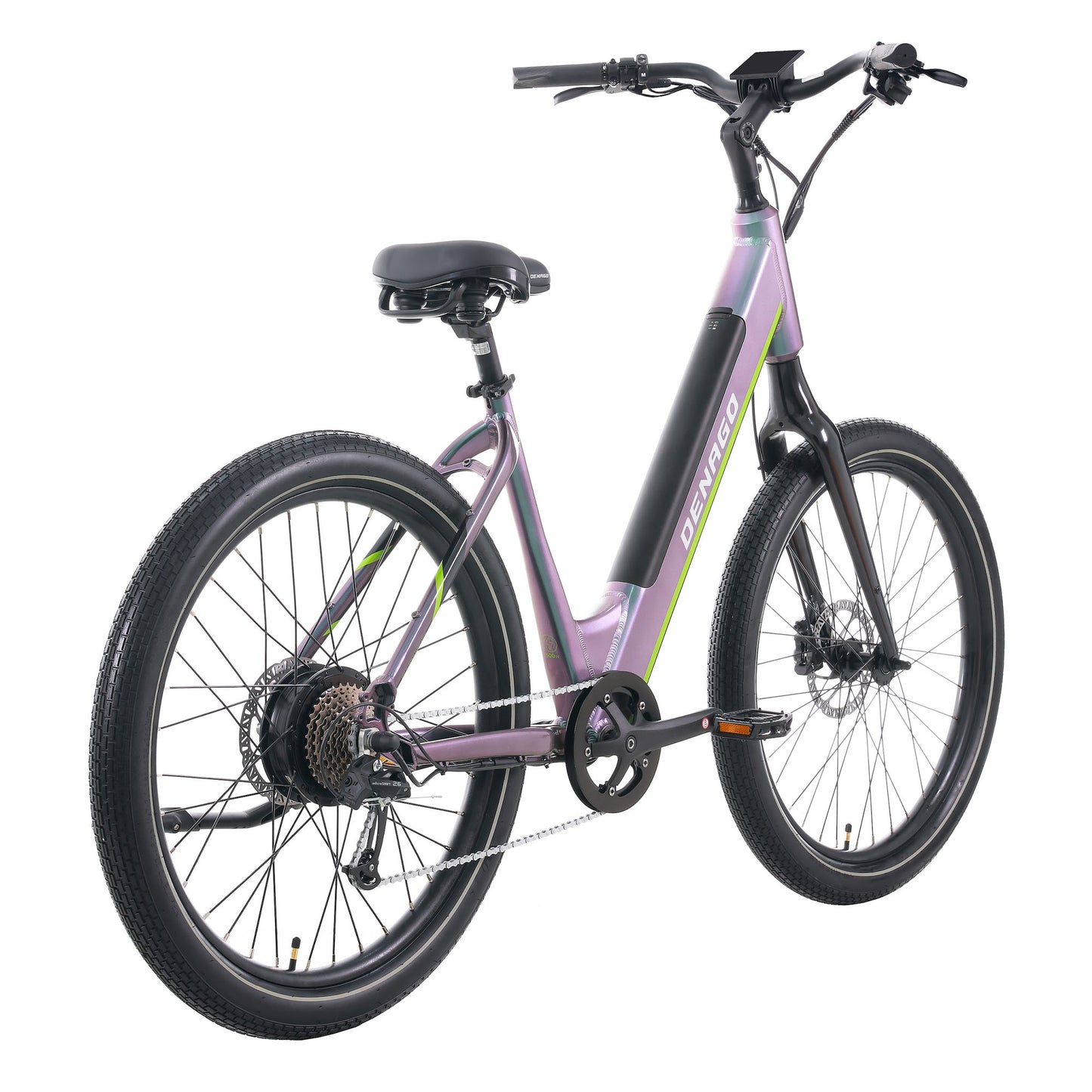

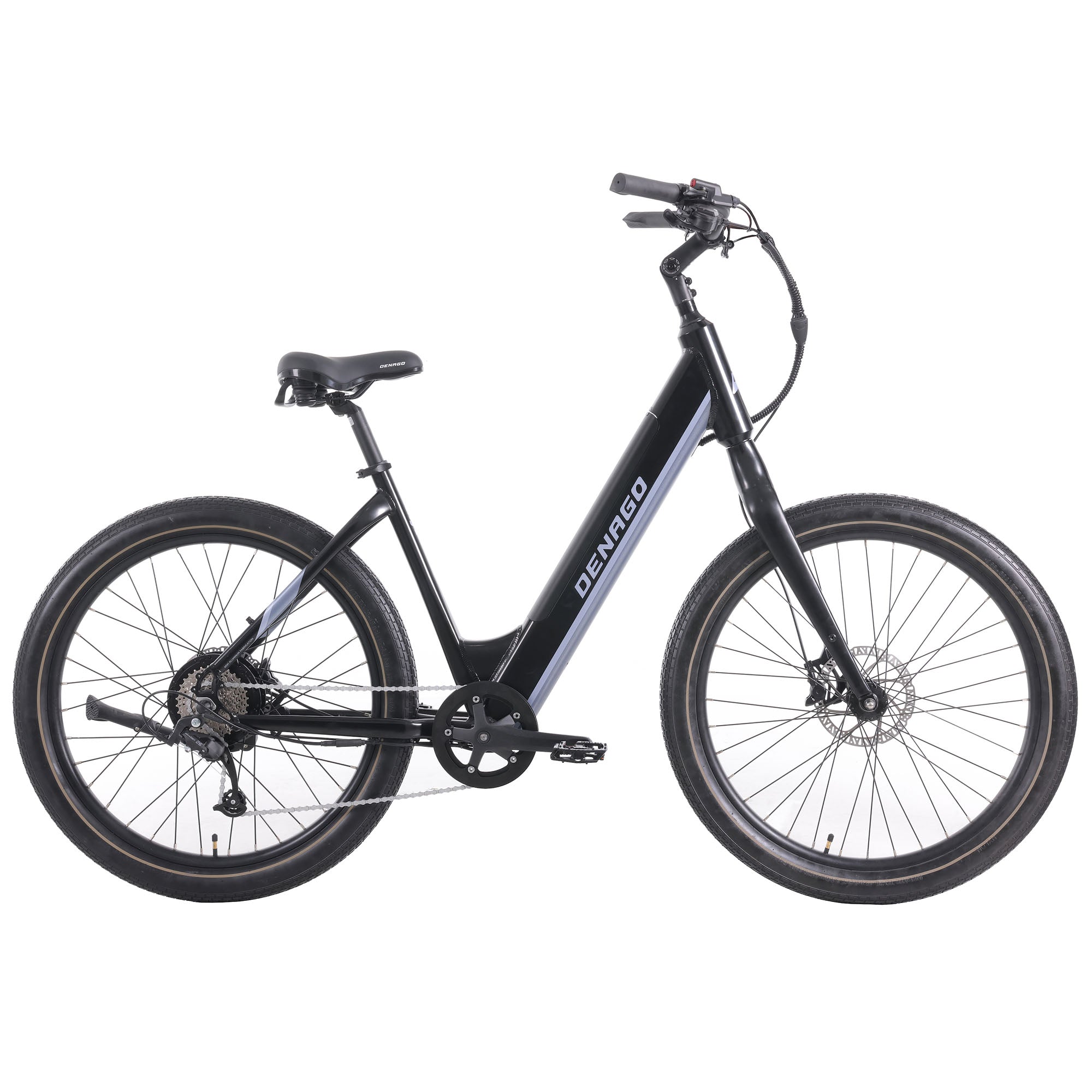

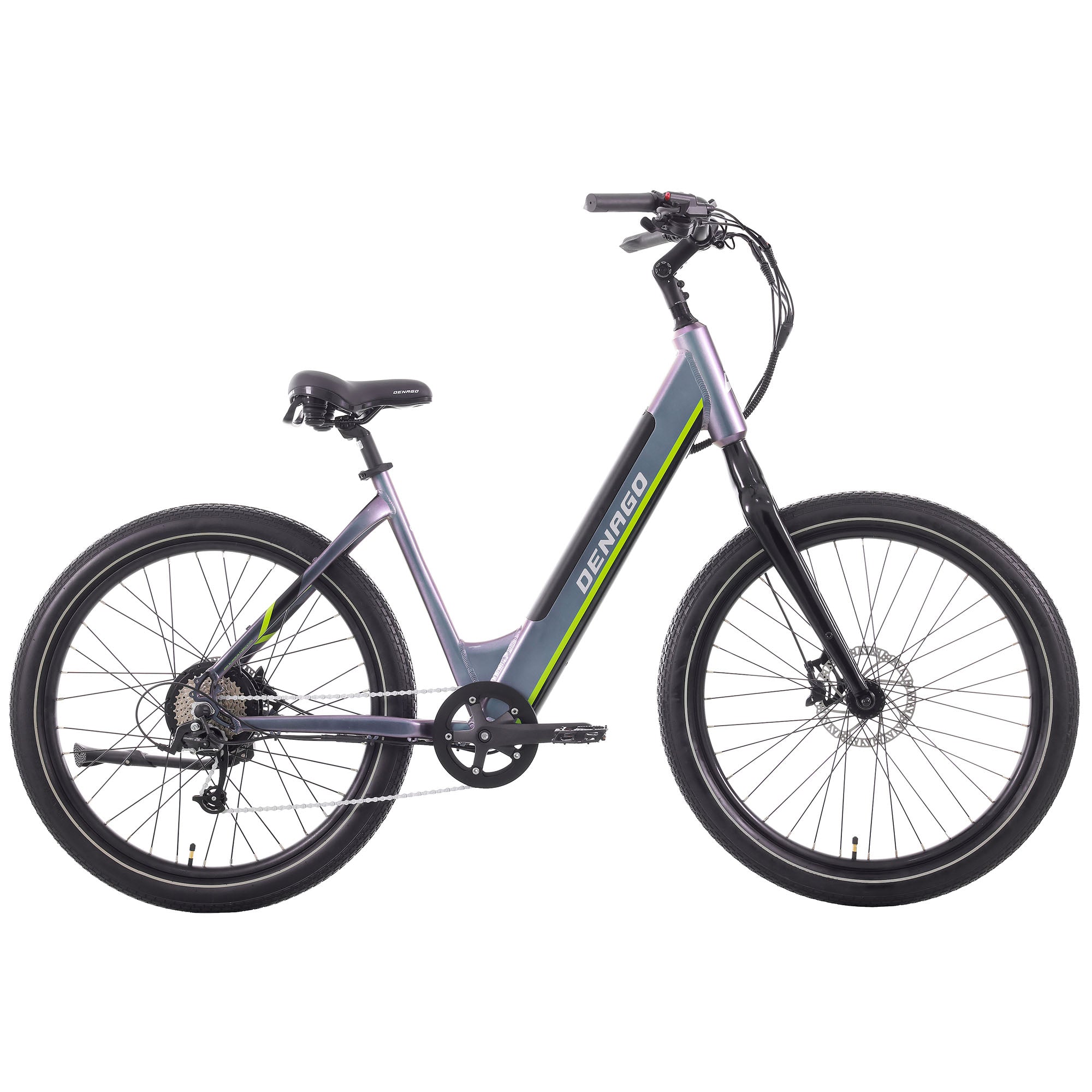

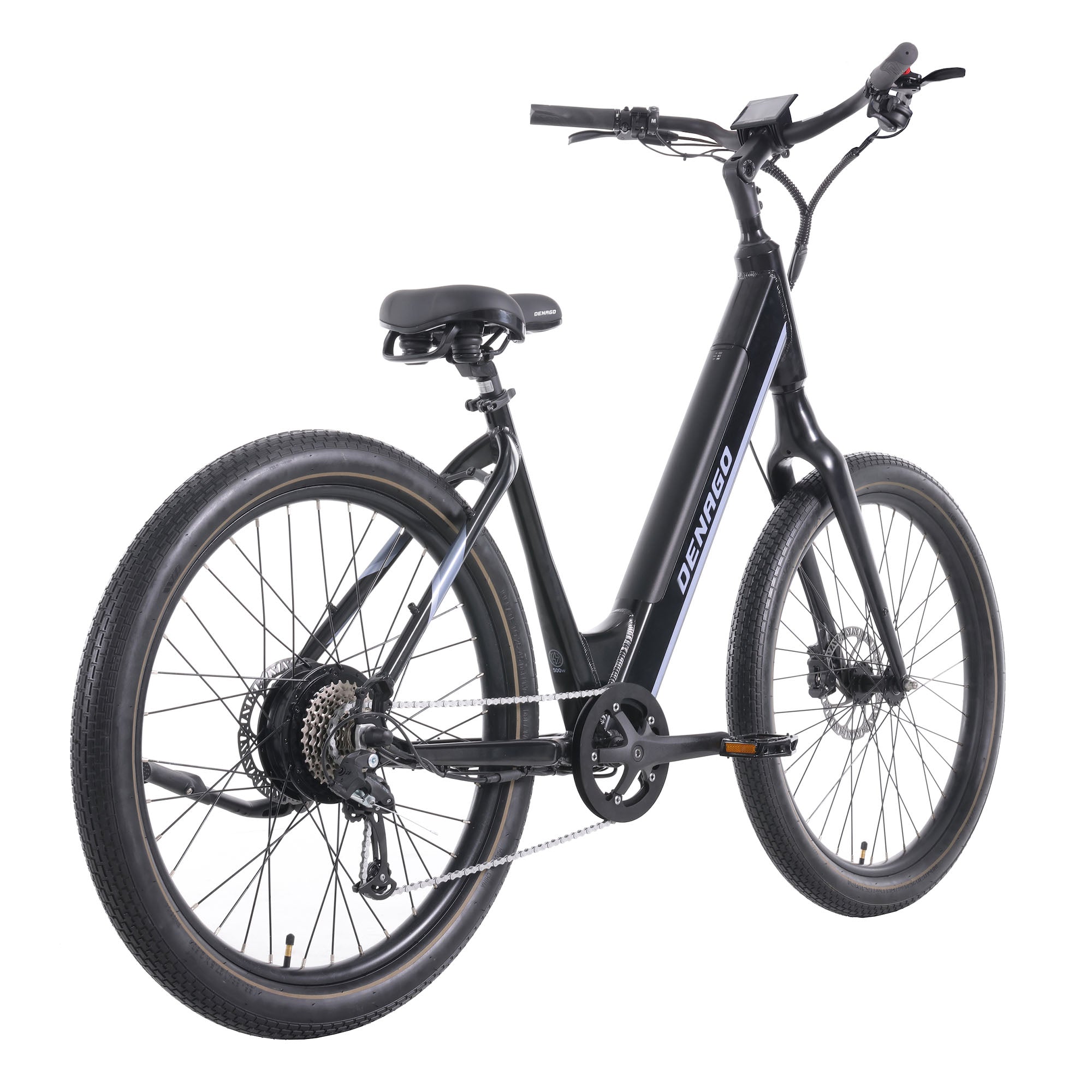

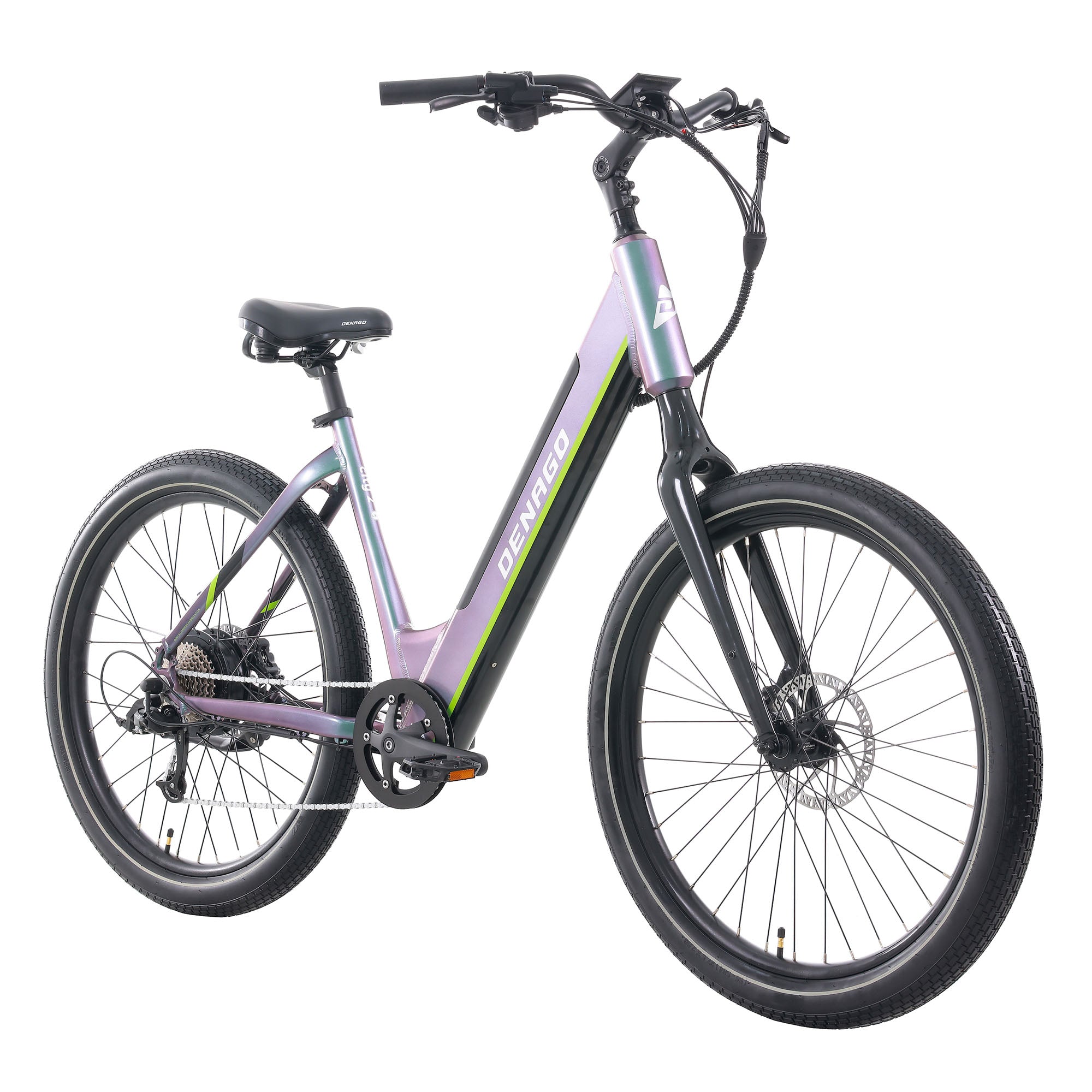

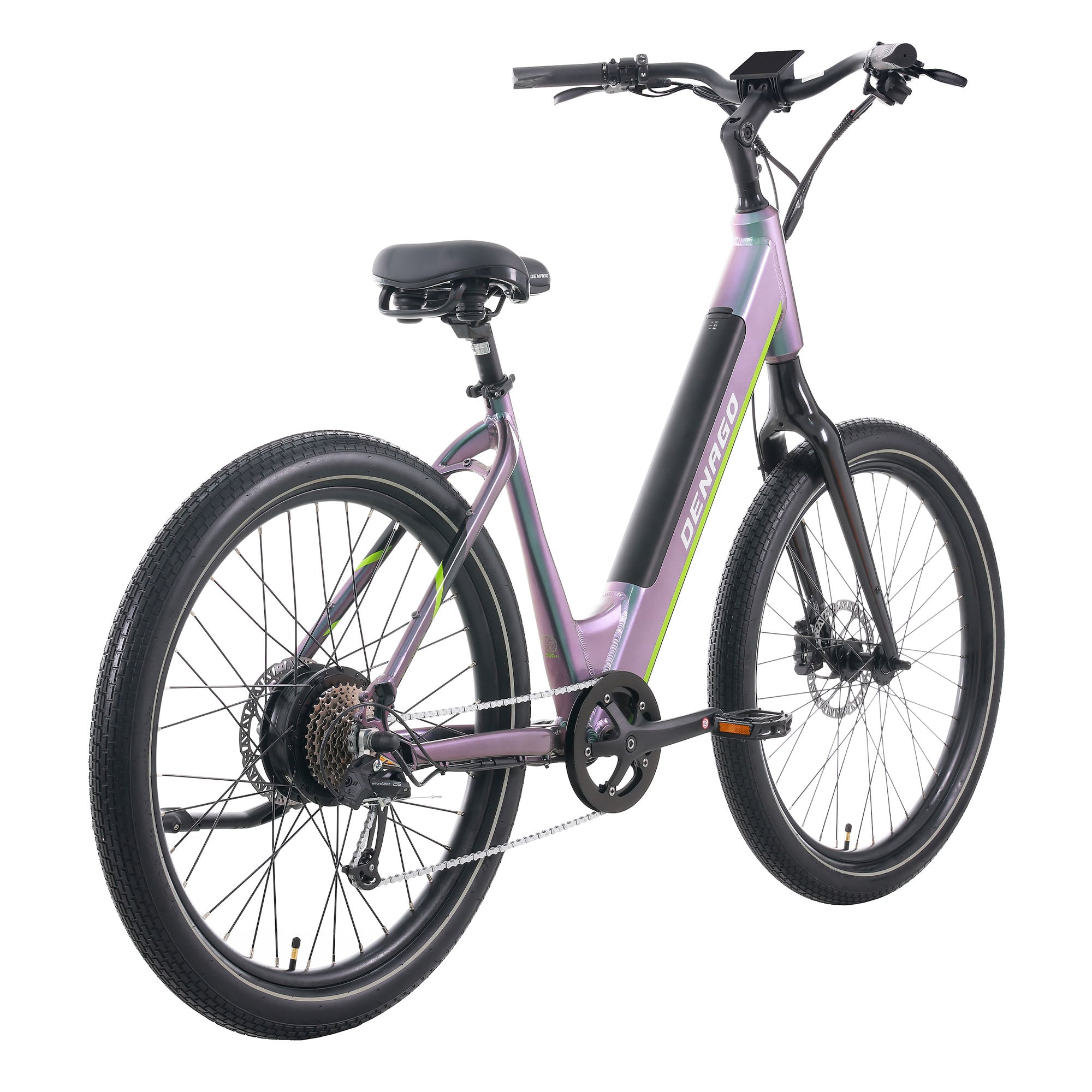

Denago City Model 2 Step-thru eBike

write a review

Regular price $1,599.00
Regular price $1,399.00 Sale price $1,599.00
Sale Sold out
Size: S/M
Color: Black
Questions? Let Us Help
Denago's City Model 2 eBike in step-thru frame style, ideal for riders with short inseams or poor flexibility. The step-thru frame makes it easy to start and stop. The sequel to Denago's award-winning City Model 1 now includes wider tires, integrated battery, and 8 speed drivetrain.

Class III eBike up to 28 MPH pedal assist, 20 MPH throttle
Step-thru frame style Easy starting and stopping
Adjustable stem Easily raise and lower handlebars
2.6" tires Extra comfort and grip
USA-based support Help when you need it
Comfort saddle with convenient lift handle
Digital display Key stats at a glance
Hydraulic disc brakes Big stopping power
Kickstand Easy to park
Locking battery additional security
  • Up to 28 MPH on pedal assist and 20 MPH on throttle

    This Class III eBike features both pedal assist and throttle models. Dial in your desired level of pedal assist on the handlebar remote.

  • Stealthy, integrated battery

    652.8 Wh (48V, 13.6A) battery is integrated into the down tube for a stealthy look, making it less obvious you're riding an eBike. Includes 3 Amp fast charger, you can charge with the battery on, or off the bike.

  • 40+ mile range

    Real-world range testing shows most riders will get more than 40 miles on a single charge when using pedal assist, and 20 miles on throttle alone.

  • Digital display

    Monitor your speed, distance, battery charge, and other data on the high-resolution display. Set an optional PIN code for additional security.

1 of 4

Collapsible content

See Full eBike Features

Top Speed:
28 MPH on pedal assist, 20 MPH on throttle (Class III eBike)

Motor:
Shengyi rear hub, 48V, 500W

Battery:
Lithium-ion, 48V, 13.6A (652.8Wh) built with LG 18650 cells

Sensors:
Cadence, Speed

Throttle:
Thumb throttle, left side

Display:
Denago high-resolution LCD with speed, pedal assist level, trip distance, odometer, trip time, battery charge level, and walk mode functions.

Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug

Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.

  • Versatile 2.6" tires

    Tackle more varied terrain with wider 2.6" tires that absorb bumps and rough pavement. They're eBike-rated and features anti-puncture technology, plus reflective sidewalls for safety.

  • Suspension-corrected geometry

    Upgrade to a suspension fork later, without affecting the geometry of your eBike. Future-proof design in case your needs change.

  • Powerful hydraulic disc brakes

    City Model 2 uses hydraulic disc brakes with oversized rotors for more braking power.

  • 8 speed drivetrain with OGD

    With an 11-32 tooth cassette, you'll have a wide range of gears, for everything from hills to headwinds. Optical Gear Display shows your chosen gear at a glance.

  • Padded saddle with lift handle

    Comfortable, wide, padded saddle includes a lift handle to help you carry your eBike up stairs or load onto a car rack.

  • Included kickstand

    Kickstand makes parking a snap at your home, office, or vacation spot.

1 of 6

Collapsible content

See Full Component Specifications

FRAME AND FORK

Frame:
6061-T6 Aluminum Alloy, Step-thru style

Fork:
Rigid, suspension-corrected length

Kickstand:
included

DRIVETRAIN

Pedals:
Platform, aluminum alloy, 9/16” with reflectors

Crankset:
Aluminum alloy, 170mm, 42 tooth chainring

Bottom Bracket:
Sealed, square taper, English thread

Rear Derailleur:
Microshift M26, 8 speed

Cassette:
8 speed, 11-32 teeth

Shifter:
Microshift 8 speed

Chain:
KMC Z-Series, 3/32”

COCKPIT

Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 660mm long

Handlebar Bell:
included

Grips:
Black rubber, lock-on style

Stem:
Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless, adjustable angle

Headset:
1 ⅛”, sealed, threadless

Saddle:
Comfort with lift handle

Seatpost:
Zoom aluminum alloy, 30.4mm diameter, 300mm length

Seatpost Clamp:
Zoom, quick release

BRAKES

Levers:
Hydraulic disc brake with motor cut-off

Calipers:
Hydraulic disc brake

Rotors:
180mm, 6 bolt type

WHEELS

Tires:
27.5" x 2.6", puncture protection with safety reflective stripe

Tubes:
27.5" x 2.6", schrader valve

Rims:
Aluminum Alloy, 36 holes, 27.5"

Hubs:
Front - nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake

Spokes:
Front - 36, 13 gauge spokes
Rear - 36, 13 gauge spokes

Nipples:
Brass

WEIGHT AND PAYLOAD

Complete eBike with battery:
58 lbs

Maximum rider weight:
300 lbs

Maximum cargo capacity:
55 lbs on the optional seatstay-mounted rear rack

WHAT'S IN THE BOX

Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)

COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!

Upgrades from City Model 1

  • Fully-integrated vs. semi-integrated battery
  • 8 speed drivetrain vs. 7 speed drivetrain
  • Suspension-corrected fork
  • Wider (2.6") tires vs. 2.3" tires
  • Dustin is 6'1" tall

    Shown riding City Model 2 Step-thru, size L/XL

  • Lakana is 5'7" tall

    Shown riding City Model 2 Top Tube, size S/M

  • Sam is 6' tall

    Shown riding City Model 2 Step-thru, size L/XL

1 of 3

Collapsible content

Full geometry chart and dimensions

Denago City Model 2 Step-thru eBike geometry chart

Denago's size and fit recommendations

Denago recommends:

Size S/M for riders 4'11" - 5'8"
Size L/XL for riders 5'8" - 6'5"

  • UPS logo

    Always free shipping

    Free standard shipping is available on all eBikes offered at Bike.com.

  • Fast delivery of your new eBike

    Free standard shipping arrives anywhere in the 48 continental United States in just 1-5 business days.

  • Flare logo

    Free subscription to Flare Premium

    We've partnered with Flare to provide a free 1 year subscription to their Premium safety and tracking app with every eBike sold.

    Learn more about Flare
  • Denago pedal wrench

    Do it yourself

    Assembly tools and instructions included with every eBike. Get free help from the Bike.com experts anytime.

  • Beeline Connect logo

    Get help from a local bike shop via Beeline Connect

    Choose a local bike shop to assemble and tune your new eBike. Additional charge applies. Learn more.

  • Order 2 and get free ready to ride delivery

    Order 2 eBikes and we'll build and tune them, then deliver them to you ready to ride. Learn more.

1 of 3

Documents for the Denago Fat Tire Step-thru eBike

DOWNLOADS

Geometry Chart

Denago City Model 2 Step-thru geometry chart
Last updated: Feb 8, 2023 (JPG)

Quick Start Guide

Denago City Model 2 eBike Quick Start Guide
Last updated: Feb 8, 2023. (PDF)

Owner's Manual

Denago City Model 2 eBike Owner's Manual
Last updated: Feb 8, 2023 (PDF)

Display Instructions
