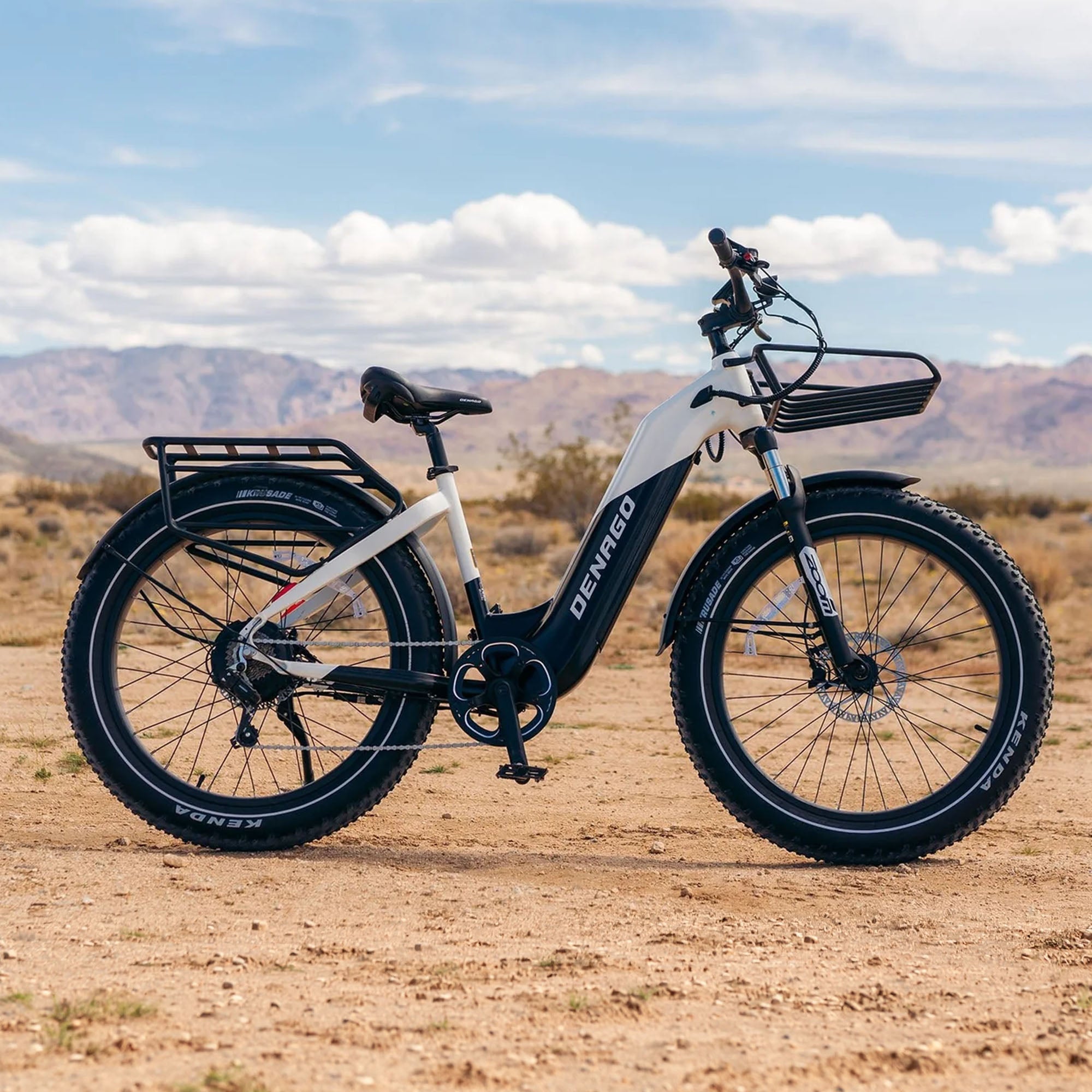

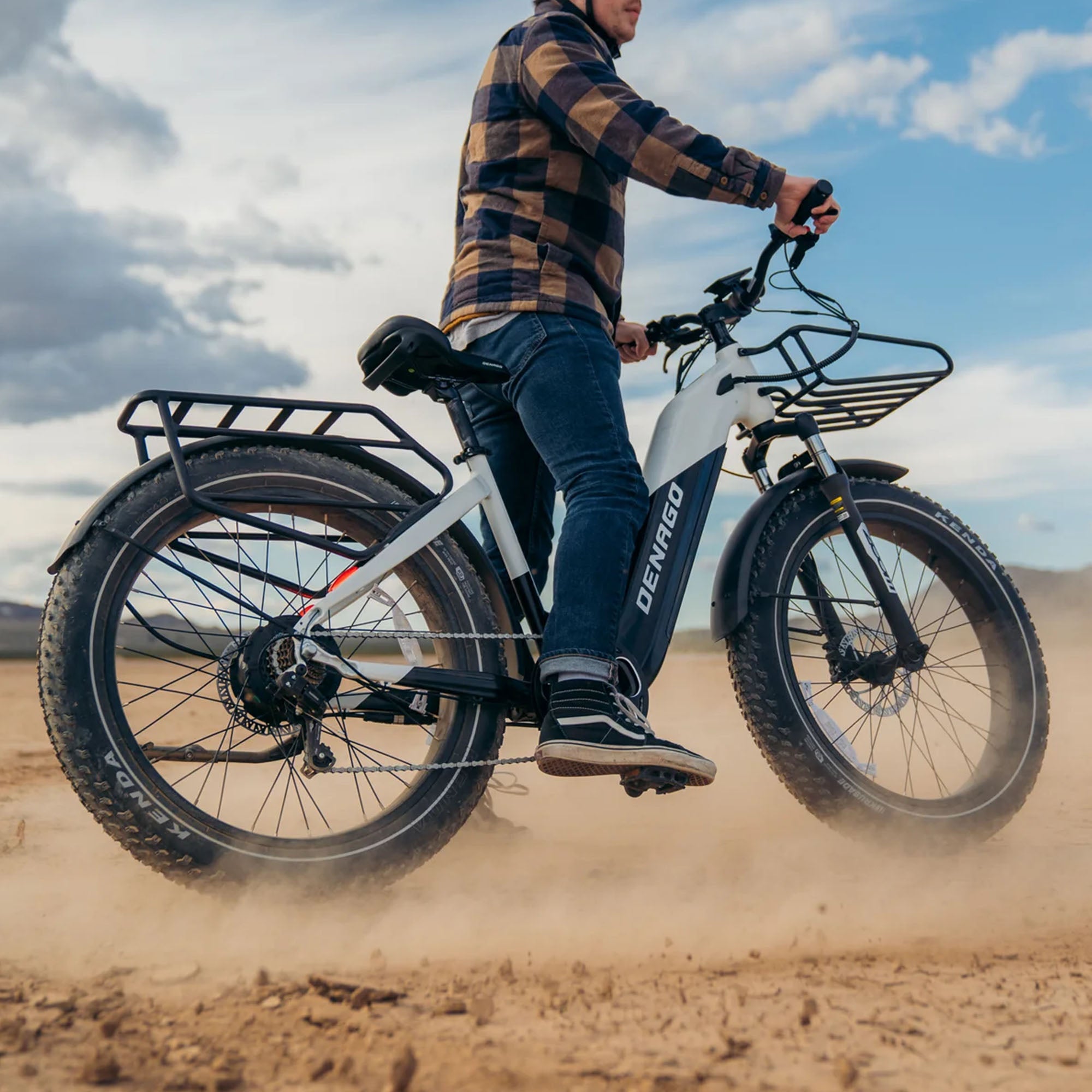

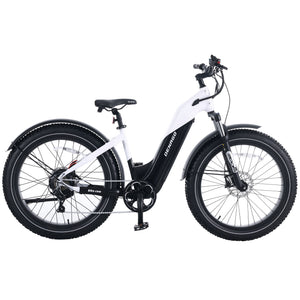

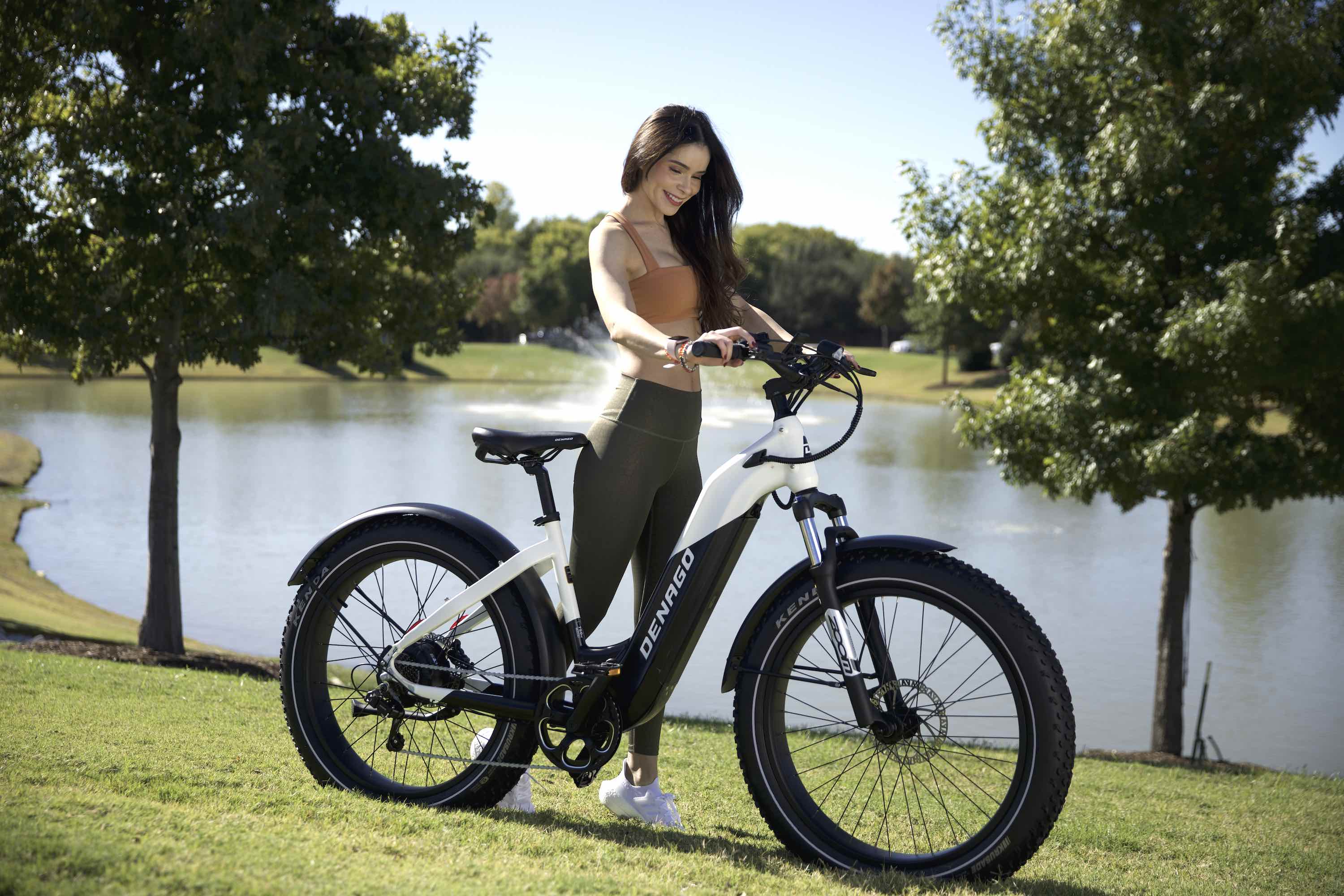

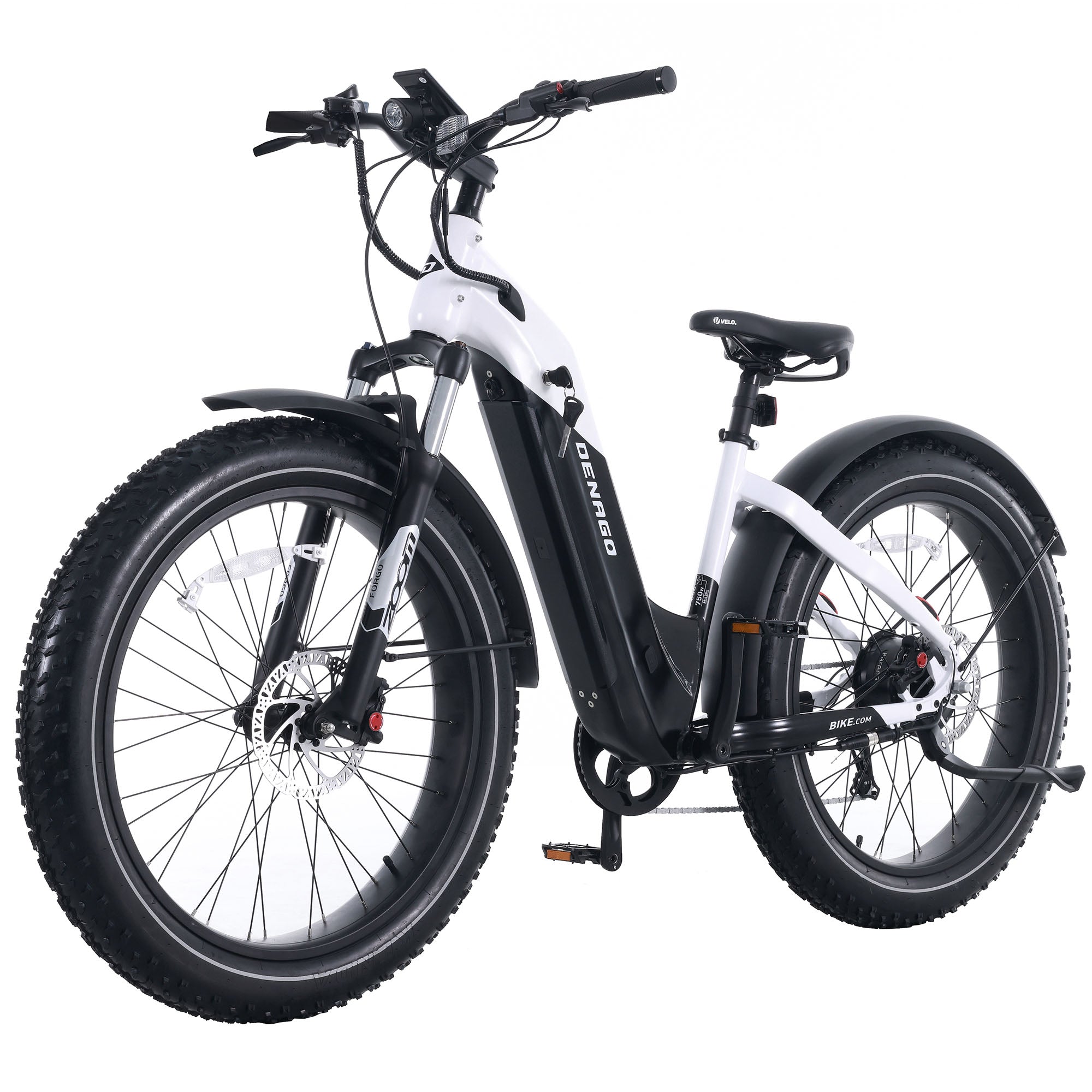

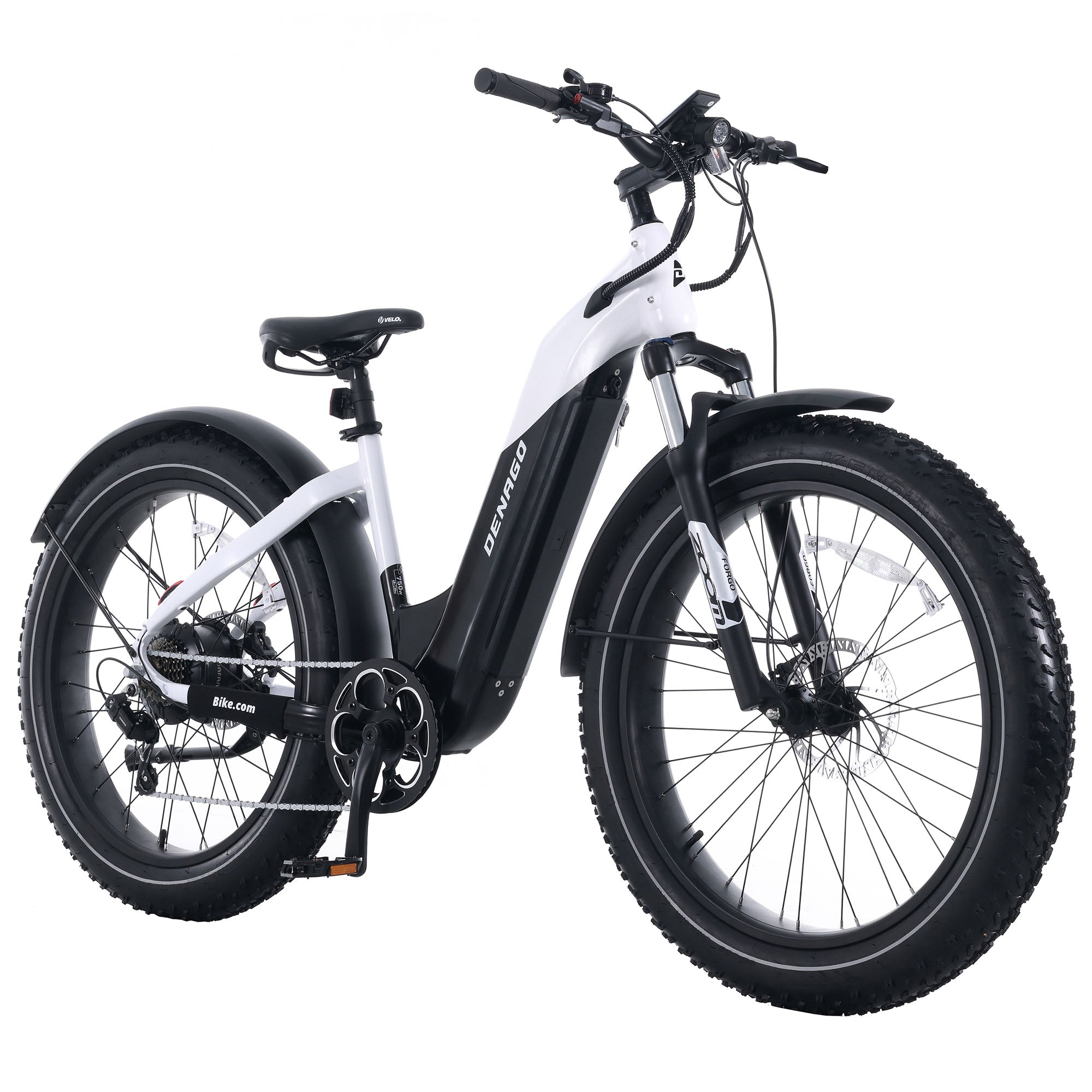

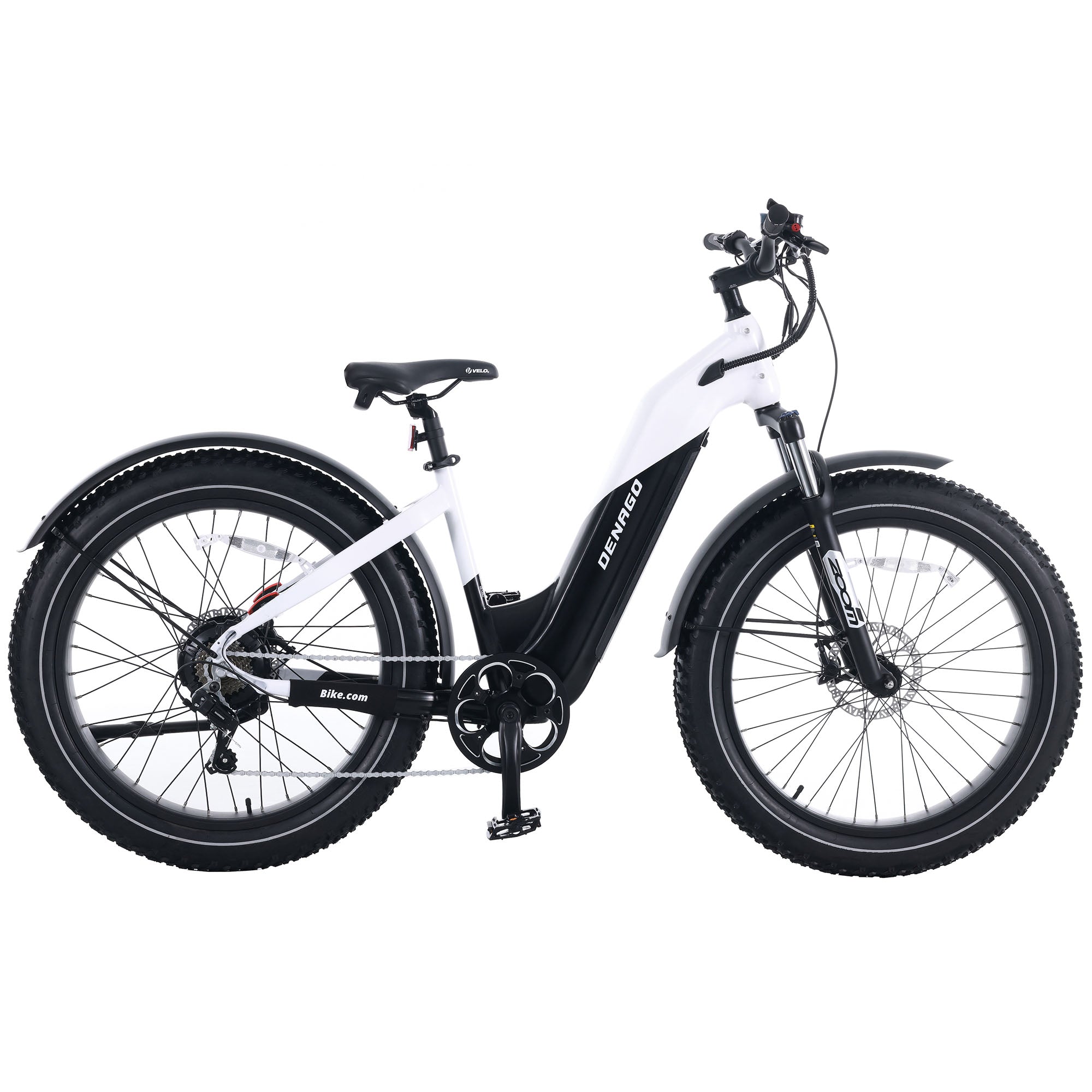

Denago Fat Tire Step-thru eBike

write a review

Regular price $1,799.00
Regular price $1,799.00 Sale price $1,799.00
Sale Sold out
Color
Size
Size Chart
Questions? Let Us Help

Denago's Fat Tire eBike features huge 4" tires that can roll over dirt, grass, sand, or snow with ease. This eBike uses an upgraded torque sensor for the most natural pedaling feel, plus an upgraded larger capacity battery for extended rides.

Step-thru frame for easy starting and stopping with the lowest possible standover height, plu a premium Bafang rear hub motor, and upgraded LG 21700 battery cells that pack more power into a compact space.



4" wide fat tires Incredible traction and comfort from the extra-wide tires.
Extended-range battery Extended 921.6 Wh battery with premium LG 21700-series cells.
Torque sensor Responds to rider input for the most natural pedaling feel.
Color LCD display High-resolution color digital display.
Designed in Texas Backed by our USA-based support team.
Hydraulic disc brakes With oversized rotors for huge braking power.
Class III eBike Up to 28 MPH on pedal assist, 20 MPH on throttle
Step-thru frame Ultra-low standover height.
Wide, padded saddle Ride in comfort.
Heavy-duty kickstand No additional charge.
Bafang rear hub motor 750 watts of power.
Locking battery For additional security.
  • Denago fat tire eBike on bridge

    Up to 28 MPH on pedal assist and 20 MPH on throttle

    This Class III eBike features both pedal assist and throttle models. Dial in your desired level of pedal assist on the handlebar remote. Throttle-on-demand: you can engage the throttle at any time, even from a dead stop - perfect for starting and stopping on hills, or pulling away from a stoplight.

  • Battery hidden in down tube of Denago eBike

    Denago's largest battery ever

    Take all day adventures with the 921.6 Wh battery. LG 21700 cells pack more energy into a compact space. Includes 3 Amp fast charger.

  • Denago Fat tire eBike headlight

    Built-in lights

    Integrated front and rear lights are powered by the eBike battery. Control them from the handlebar remote.

  • eBike with Bafang rear hub motor

    Torque Sensor

    Features torque sensor technology, for the most natural pedaling feel on off-road surfaces.

  • The color display on a Denago eBike

    Color display

    Beautiful, high-resolution color display shows your speed, distance, battery charge remaining, and other stats. Set an optional PIN code for additional security.

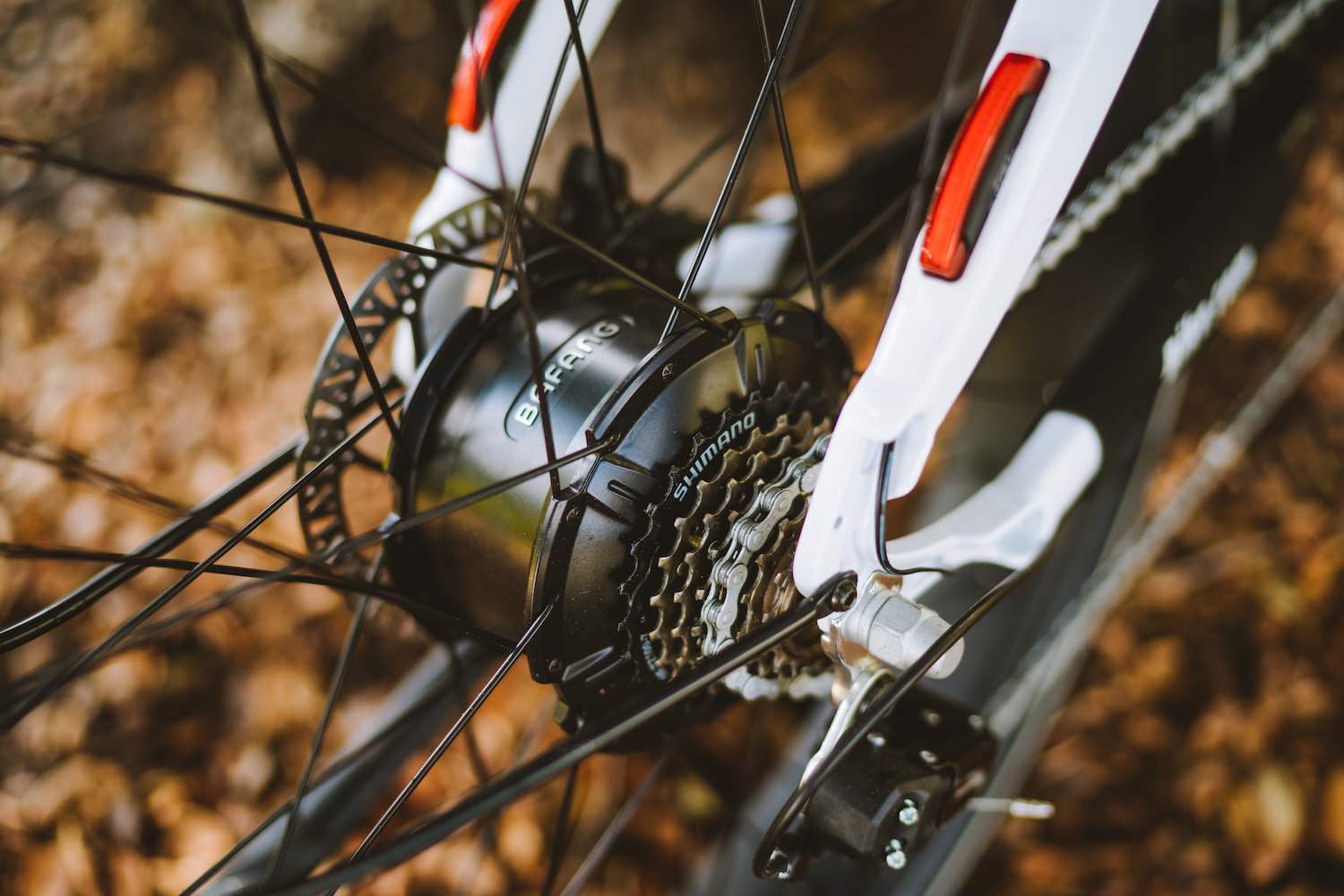

  • Bafang rear hub on a Denago eBike

    Bafang 750 watt hub motor

    The most powerful motor available by law in many locations! Plenty of power for climbing steep hills.

1 of 6

Collapsible content

See Full eBike Features

Top Speed:
28 MPH on pedal assist, 20 MPH on throttle (Class III eBike)

Motor:
Bafang rear hub, 48V, 750W, 80 Nm torque rating

Battery:
28 MPH on pedal assist, 20 MPH on throttle

Sensors:
Torque, Speed

Throttle:
Thumb throttle, left side

Display:
Denago color high-resolution LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, calories, and walk mode functions plus integrated front and rear light controls.

Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug

Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.

Watch: the Denago Fat Tire eBike

  • all terrain fat tire eBike tires

    Ride on all terrain

    Kenda's fat 4" tires can handle dirt, grass, gravel, sand, and snow.

  • photograph of Zoom suspension fork on Denago Fat tire eBike

    Zoom suspension fork

    Suspension fork helps you ride with more comfort and control on bumpy roads or trails.

  • eBike with hydraulic disc brakes

    Powerful hydraulic disc brakes

    Bigger, heavier eBikes travel faster and need more powerful brakes. We used hydraulic disc brakes with oversized rotors for more stopping power.

  • Shimano shifter on an eBike

    Shimano Drivetrain

    Shifting gears is easy with the Shimano shifter, rear derailleur, and freewheel.

  • Denago eBike rear fender

    Metal fenders

    Sturdy, attractive front and rear fenders keep you dry when riding in the wet.

  • Included kickstand

    Kickstand makes parking a snap at your home, office, or vacation spot.

  • Denago fat tire eBike saddle with lift handle

    Padded saddle with lift handle

    Comfortable, wide, padded saddle includes a lift handle to help you carry your eBike up stairs or load onto a car rack.

  • Rear rack for Denago Fat Tire eBike

    Built-in mounting points for a rack

    Easily add an optional front or rear rack with built-in mounting points on the frame.

1 of 8

Collapsible content

See Full Component Specifications

FRAME AND FORK

Frame:
6061-T6 Aluminum Alloy, Step-thru style

Fork:
Rigid

Kickstand:
included

DRIVETRAIN

Pedals:
Platform, aluminum alloy, 9/16” with reflectors

Crankset:
Aluminum alloy, 170mm, 48 tooth chainring

Bottom Bracket:
Sealed, square taper, with torque sensor, English thread

Rear Derailleur:
Shimano Tourney, 7 speed

Freewheel:
Shimano Tourney, 7 speed, 14-28 teeth

Shifter:
Shimano Tourney, 7 speed

Chain:
KMC Z-Series, 3/32”

COCKPIT

Handlebar:
Zoom aluminum alloy, 31.8mm diameter, 700mm long

Handlebar Bell:
included

Grips:
Black rubber, lock-on style

Stem:
Zoom aluminum alloy, 31.8mm clamp, 1 ⅛” threadless
60mm extension (size S/M)
75mm extension (size L/XL)

Headset:
1 ⅛”, sealed, threadless

Saddle:
Comfort with lift handle

Seatpost:
Zoom aluminum alloy, 31.6mm diameter, 300mm length

Seatpost Clamp:
Zoom, quick release

BRAKES

Levers:
Hydraulic disc brake with motor cut-off

Calipers:
Hydraulic disc brake

Rotors:
180mm, 6 bolt type

WHEELS

Tires:
Kenda 26 x 4”, K-Shield puncture protection with safety reflective stripe

Tubes:
Kenda 26 x 4”, schrader valve

Rims:
Aluminum Alloy, 36 holes, 26"

Hubs:
Front - nutted, 36 holes, disc brake
Rear - Bafang, nutted 36 holes, disc brake

Spokes:
Front - 36 Black 13 gauge spokes
Rear - 36 Black 12 gauge spokes

Nipples:
Brass

WEIGHT AND PAYLOAD

Complete eBike with battery:
79 lbs

Maximum rider weight:
300 lbs

Maximum cargo capacity:
55 lbs

WHAT'S IN THE BOX

Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Bell
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)

COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!

  • Photo of Graciela on a Denago City Model 1 eBike

    Antonio is 5'9" tall

    Shown riding Fat Model 1 Step-thru, size S/M

  • Photo of Michelle on Denago fat tire eBike, step-thru, size S/M

    Michelle is 5'4" tall

    Shown riding Fat Model 1 Step-thru, size S/M

  • Photo of Dave on Denago fat tire eBike, step-thru, size L/XL

    Dave is 6'0" tall

    Shown riding Fat Model 1 Step-thru, size L/XL

  • Photo of Zack on Denago fat tire eBike, step-thru, size L/XL

    Zack is 6'2" tall

    Shown riding Fat Model 1 Step-thru, size L/XL

1 of 4

Collapsible content

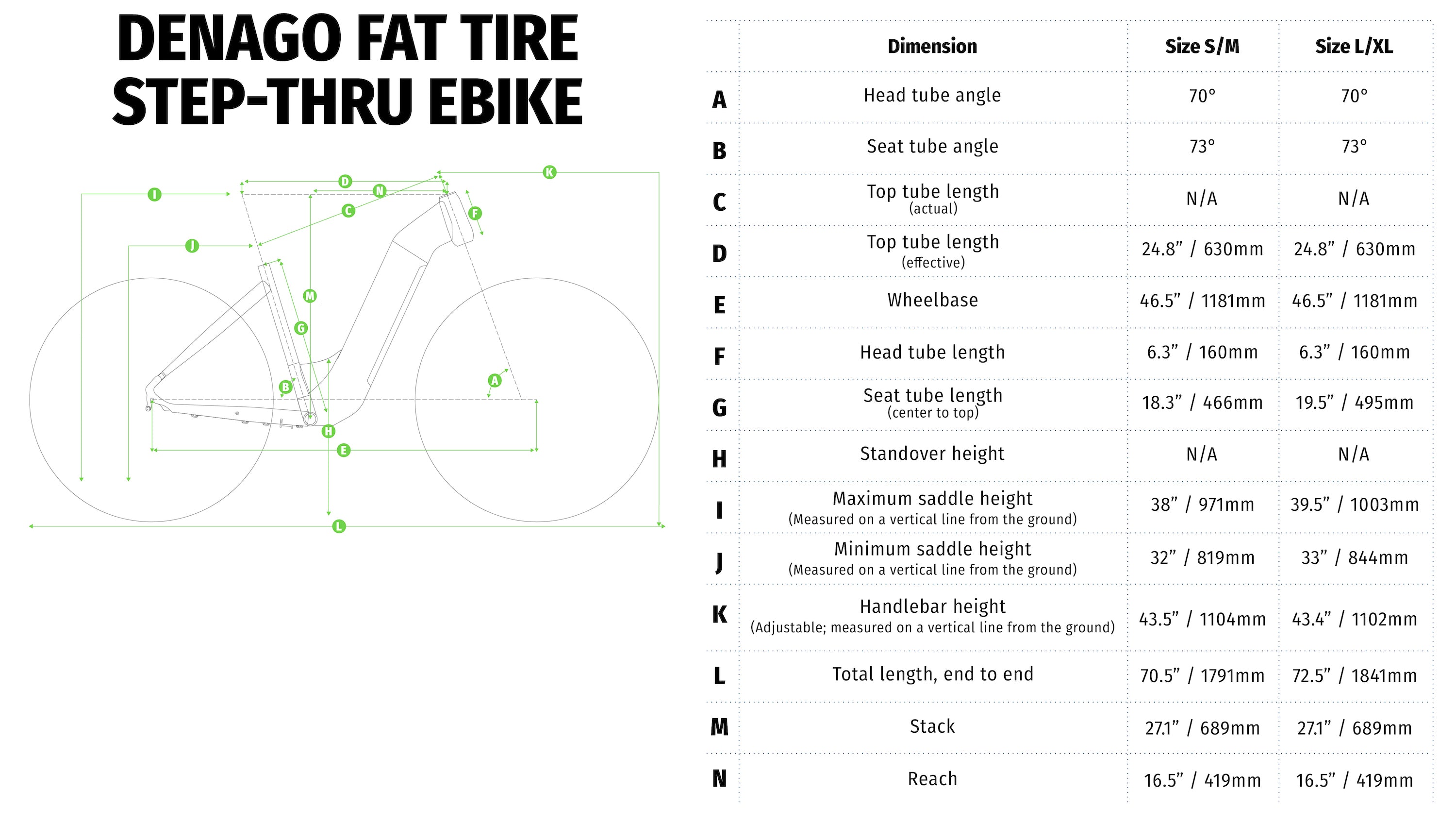

Full geometry chart and dimensions

Denago's size and fit recommendations

Denago recommends:

Size S/M for riders 5'4" - 5'11"
Size L/XL for riders 5'11" - 6'5"

Watch: eBike Escape's video review

  • UPS logo

    Always free shipping

    Free standard shipping is available on all eBikes offered at Bike.com.

  • Denago eBikes on cobblestone roads

    Fast delivery of your new eBike

    Free standard shipping arrives anywhere in the 48 continental United States in just 1-5 business days.

  • Free subscription to Flare Premium

    We've partnered with Flare to provide a free 1 year subscription to their Premium safety and tracking app with every eBike sold.

    Learn more about Flare
  • Denago pedal wrench

    Do it yourself

    Assembly tools and instructions included with every eBike. Get free help from the Bike.com experts anytime.

  • Get help from a local bike shop via Beeline Connect

    Choose a local bike shop to assemble and tune your new eBike. Additional charge applies. Learn more.

  • 2 Denago eBikes in front of a Texas mural

    Order 2 and get free ready to ride delivery

    Order 2 eBikes and we'll build and tune them, then deliver them to you ready to ride. Learn more.

1 of 3

Documents for the Denago Fat Tire Step-thru eBike

DOWNLOADS

Geometry Chart

Denago Fat Tire Step-thru eBike Geometry
Last updated: October 10, 2022. (JPG)

Quick Start Guide

Denago Fat Tire eBike Quick Start Guide
Last updated: October 10, 2022. (PDF)

Owner's Manual

Denago Fat Tire eBike Owner's Manual
Last updated: October 10, 2022 (PDF)

Display Instructions

Denago Fat Tire eBike K5274 Display Instructions
Last updated October 10, 2022 (PDF)
