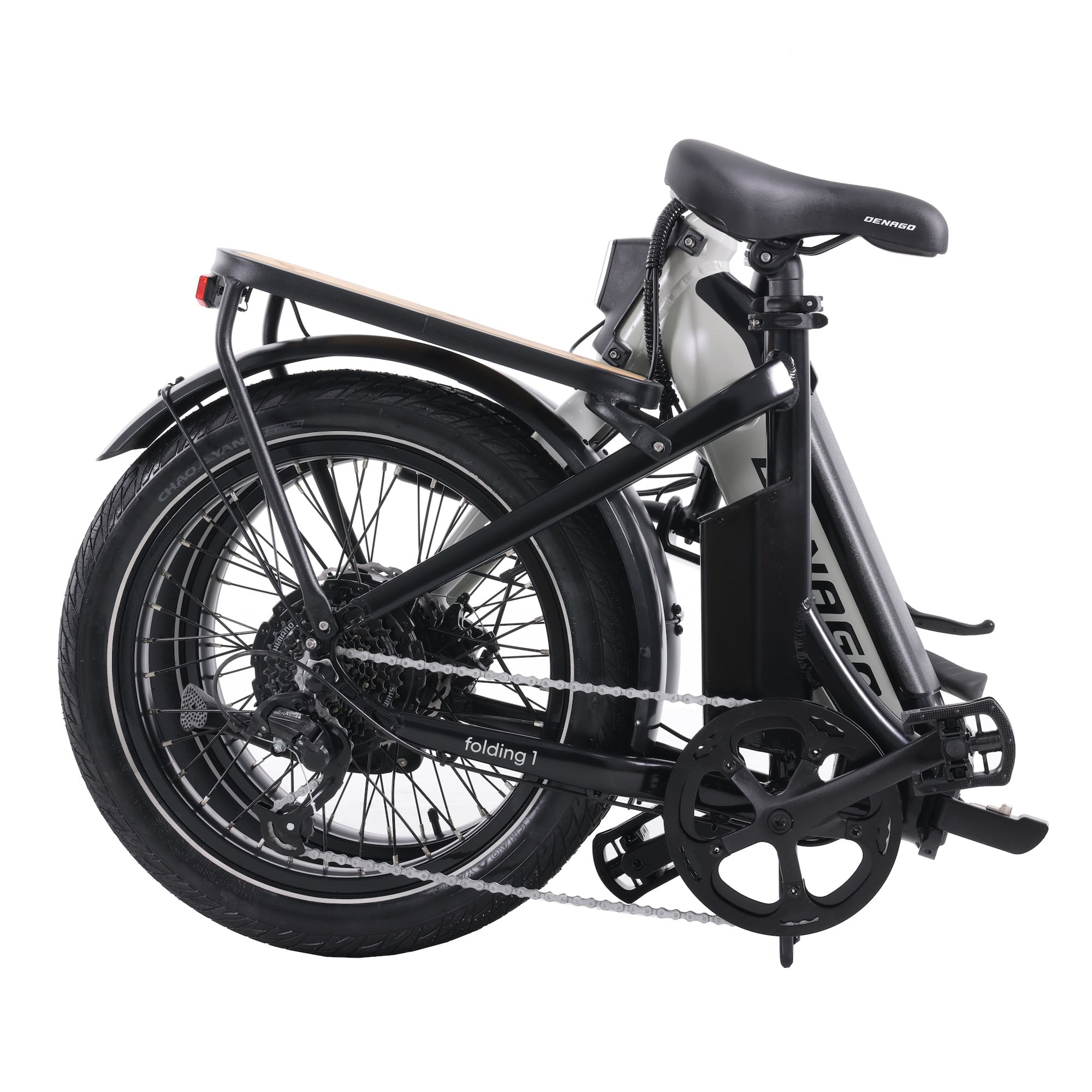

![Denago Folding 1 eBike](http://bike.com/cdn/shop/products/Foldingprimaryproductimagefoldedwhitebackground3000px_1445x.jpg?v=1675448901)
![Denago Folding 1 eBike](http://bike.com/cdn/shop/products/FoldingeBikeonboardwalkprimaryproductimage3000px_1445x.jpg?v=1675448901)
![Denago Folding 1 eBike](http://bike.com/cdn/shop/products/Foldingnondrivesidethreequarterviewprimaryproductimage3000px_1445x.jpg?v=1675448901)
![Denago Folding 1 eBike](http://bike.com/cdn/shop/products/FoldingManwithpalmtreeprimaryproductimage3000px_0ca25d9c-7c16-468e-b72c-b12bbbca3aac_1445x.jpg?v=1675448901)
![Denago Folding 1 eBike](http://bike.com/cdn/shop/products/FoldingeBikeprimaryproductphotofoldedposition3000px_1445x.jpg?v=1675448901)
![Denago Folding 1 eBike](http://bike.com/cdn/shop/products/Foldingprimaryproductimagethreequarterdrivesideview3000px_1445x.jpg?v=1675443405)
![Denago Folding 1 eBike](http://bike.com/cdn/shop/products/NewYorkWomanprimaryproductphoto4000px_1445x.jpg?v=1675877018)

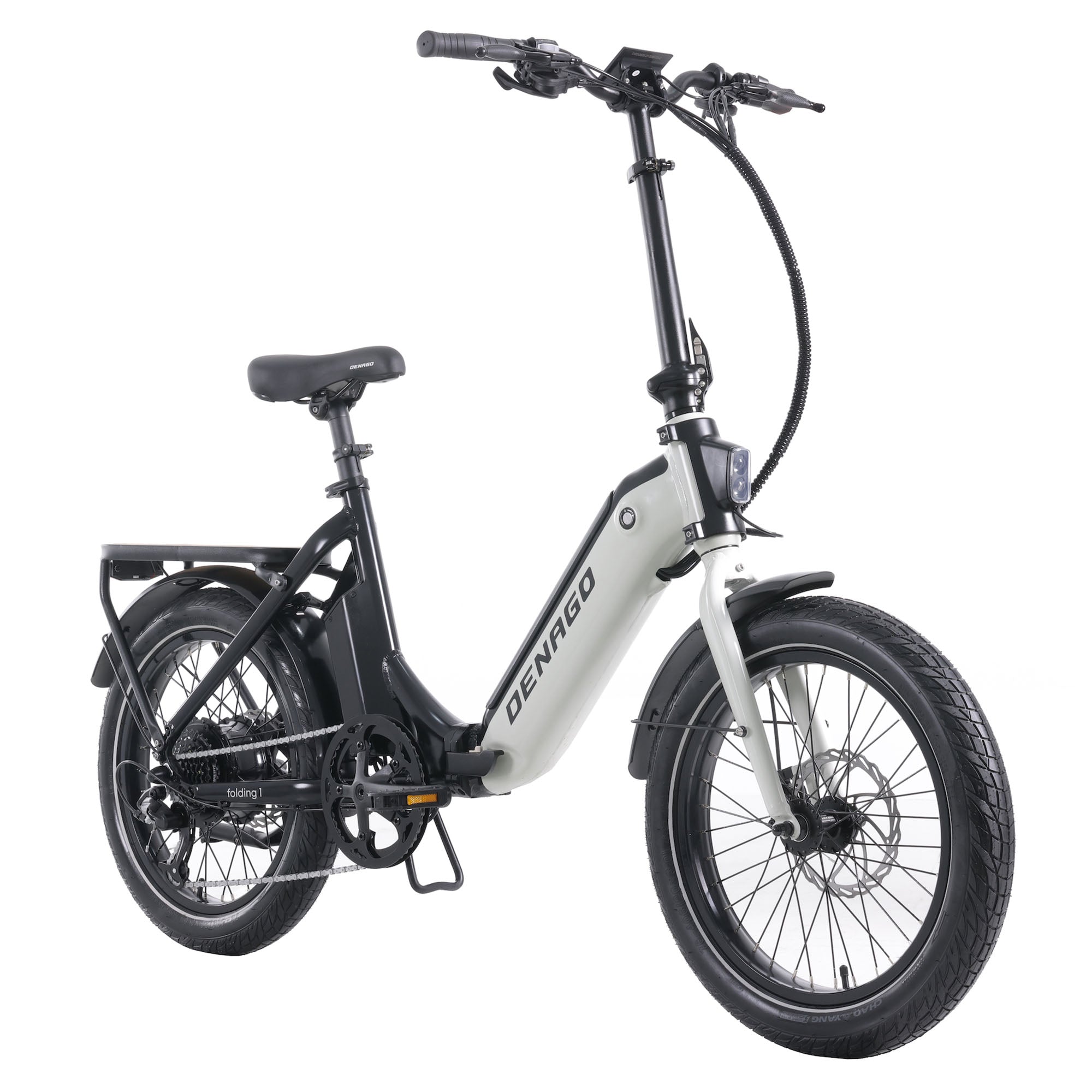

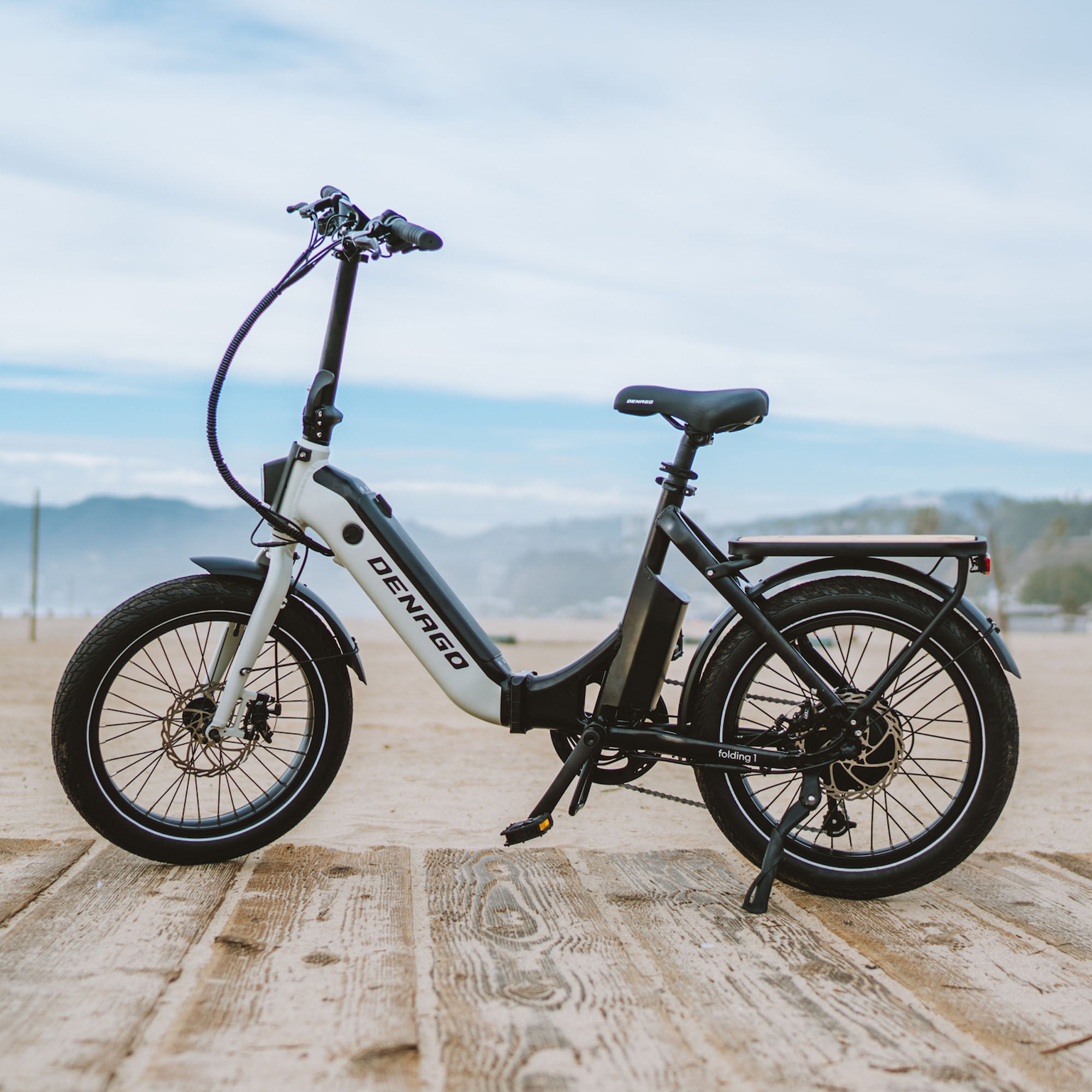

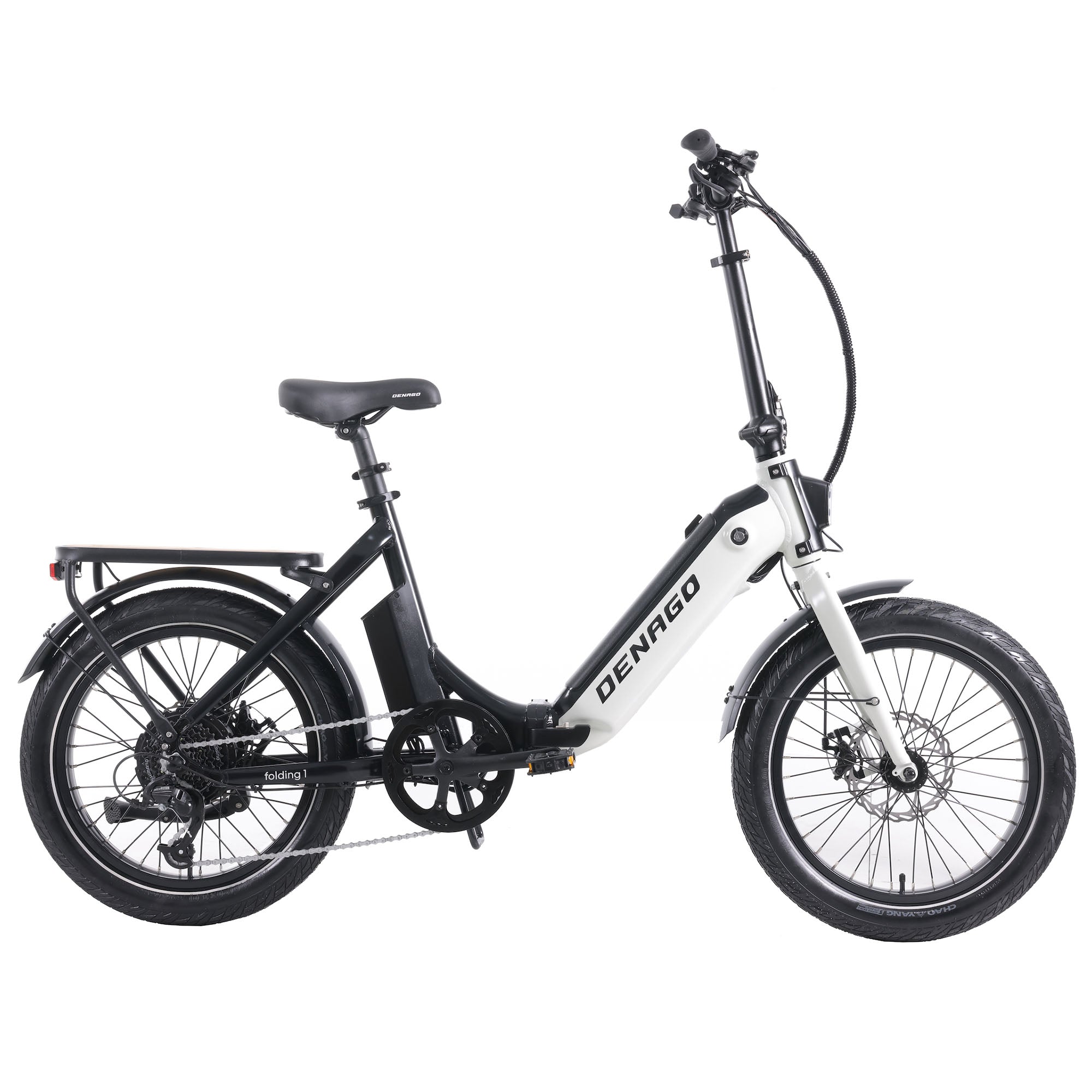

Denago Folding 1 eBike Features
Collapsible content
See Full eBike Features
Top Speed:
25 MPH on pedal assist, 20 MPH on throttle (Class III eBike)
Motor:
Shengyi rear hub, 48V, 500W
Battery:
672 Wh (48V, 14 Ah) with LG cells
Sensors:
Cadence, Speed
Throttle:
Thumb throttle, left side
Display:
Denago high-resolution LCD with speed, trip distance, odometer, trip time, battery charge level, and walk mode functions; plus integrated front and rear light controls.
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.
Component Highlights
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame:
6061-T6 Aluminum Alloy, Step-thru style, Folding
Fork:
Rigid
Kickstand:
included
DRIVETRAIN
Pedals:
Folding, 9/16” with reflectors
Crankset:
Aluminum alloy, 170mm, 48 tooth chainring, with chainguiard
Bottom Bracket:
Sealed, square taper, English thread
Rear Derailleur:
7 speed
Freewheel:
Shimano CS-HG200-7, 7 speed, 12-32 teeth
Shifter:
7 speed with optical gear display
Chain:
KMC Z7, 3/32”
COCKPIT
Handlebar:
Zoom, aluminum alloy, 25.4mm diameter, 620mm long
Grips:
Black rubber, lock-on style
Stem:
Zoom aluminum alloy, 25.4mm clamp, 1 ⅛” threadless, adjustable height, folding
Headset:
1 ⅛”, sealed, threadless
Saddle:
Denago Comfort
Seatpost:
Zoom aluminum alloy, 34.9mm diameter, 347-552mm telescopic
Seatpost Clamp:
Zoom, quick release
BRAKES
Levers:
Jak mechanical disc brake with motor cut-off
Calipers:
Jak mechanical disc brake
Rotors:
180mm, 6 bolt type
WHEELS
Tires:
20x3", anti-puncture, safety reflective stripe, eBike-rated
Tubes:
20x3", schrader valve
Rims:
Aluminum Alloy, 36 holes, 20"
Hubs:
Front - Joytech nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake
Spokes:
Front - 36 Black 13 gauge spokes
Rear - 36 Black 12 gauge spokes
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete eBike with battery:
62 lbs
Maximum rider weight:
300 lbs
Maximum cargo capacity:
35 lbs on the included rear rack
20 lbs on the optional head-tube mounted front rack, if installed
WHAT'S IN THE BOX
Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
HOW IT FITS
Collapsible content
Full geometry chart and dimensions
![Denago Folding 1 eBike geometry chart](https://cdn.shopify.com/s/files/1/0614/0202/2108/files/Denago_Folding_1_eBike_Geometry_Chart.jpg?v=1675464094)
Denago's size and fit recommendations
The Folding 1 fits most riders 5'1" - 6'5".
