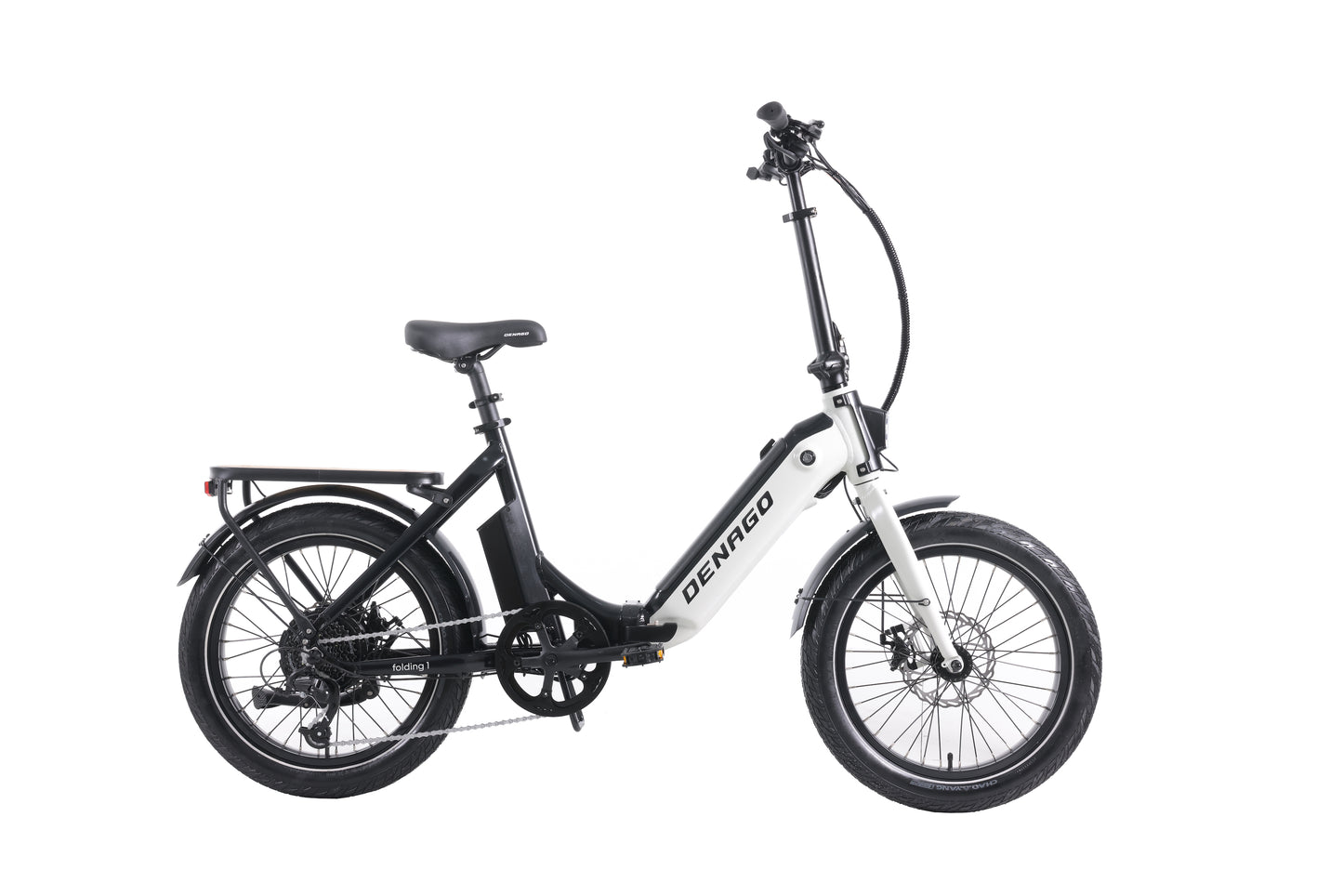

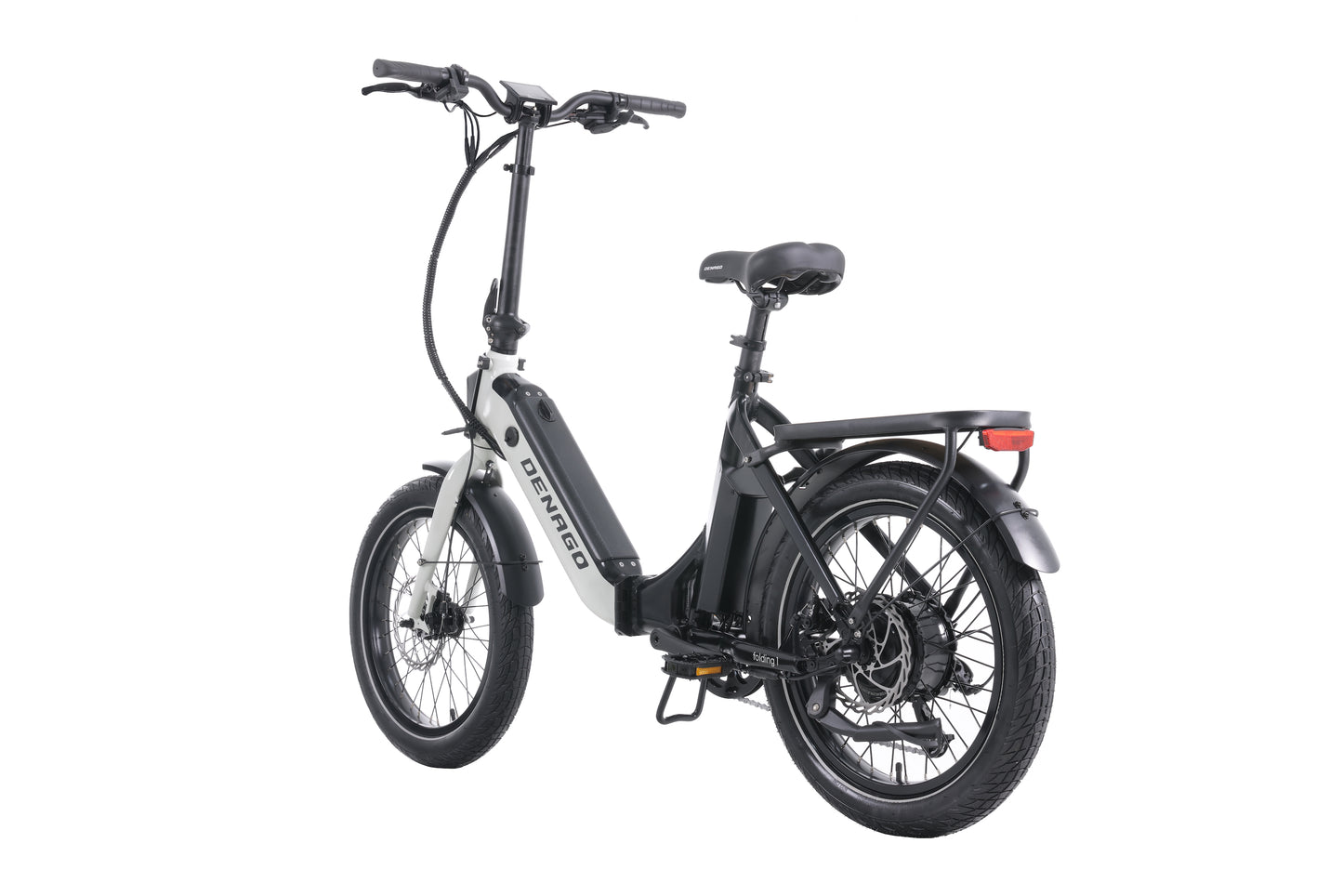

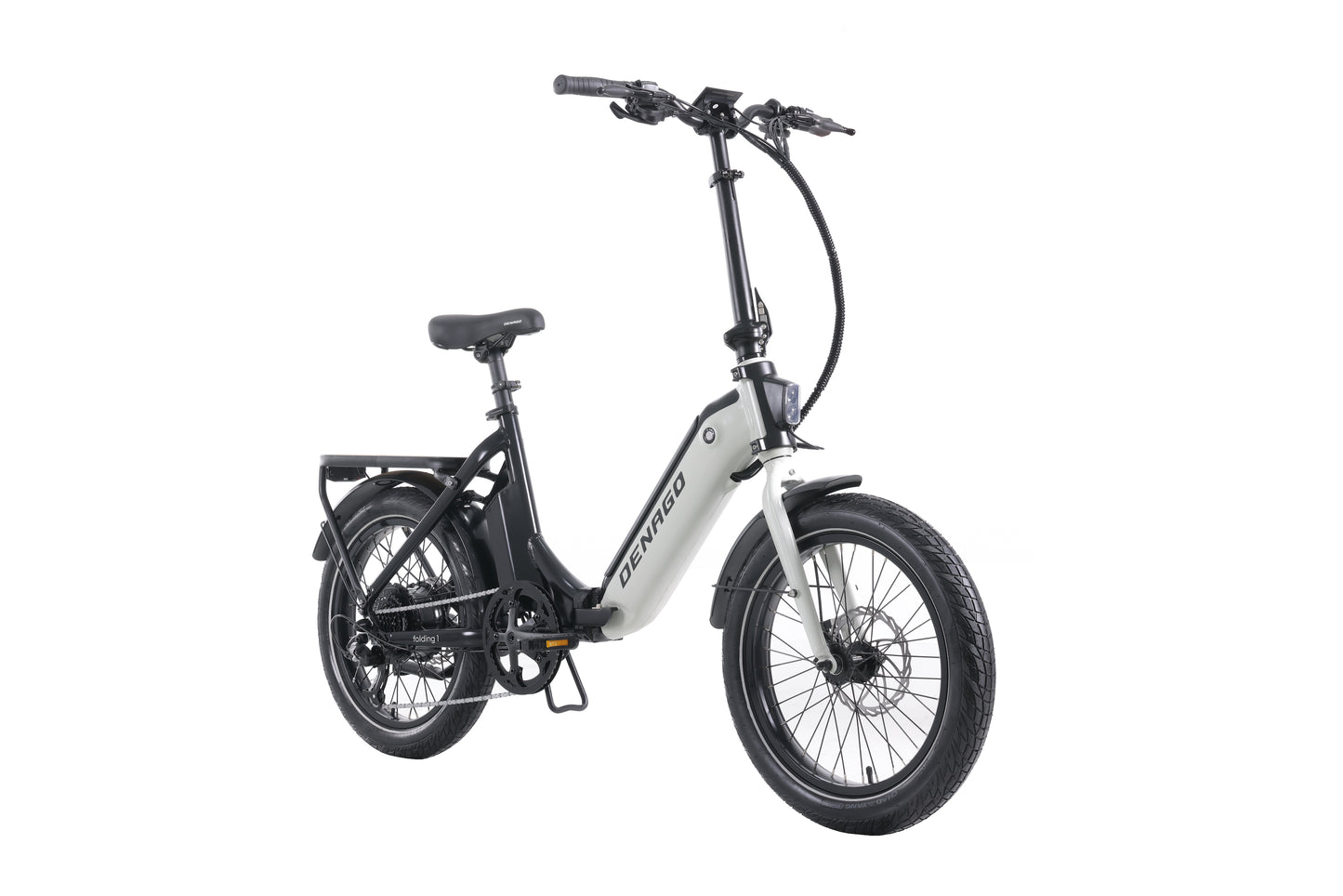

Denago Folding 1 eBike
1 write a review
Regular price
$1,499.00
Regular price
$1,499.00
Sale price
$1,499.00
Unit price
per
Couldn't load pickup availability
Questions?
Let Us Help

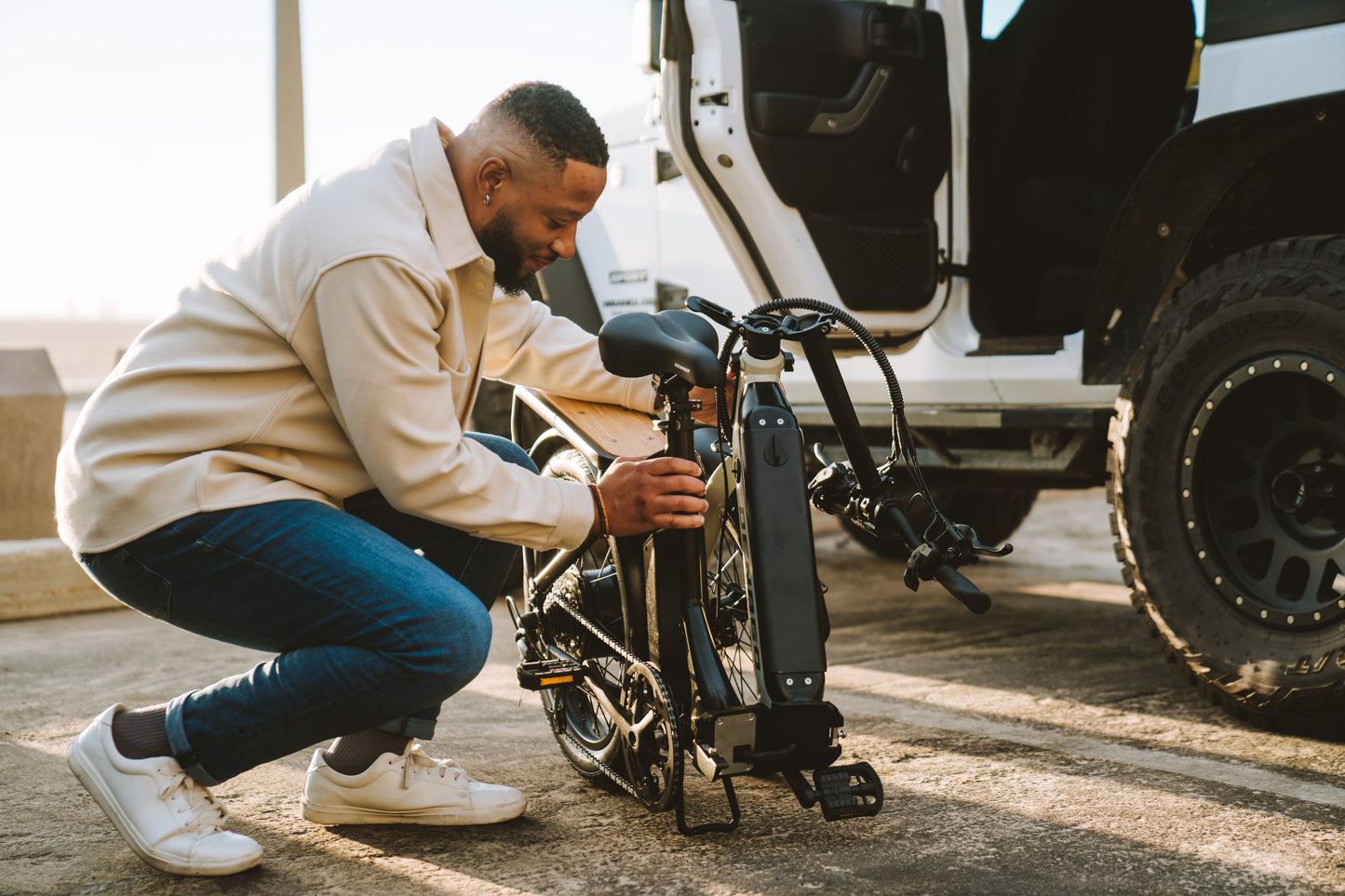

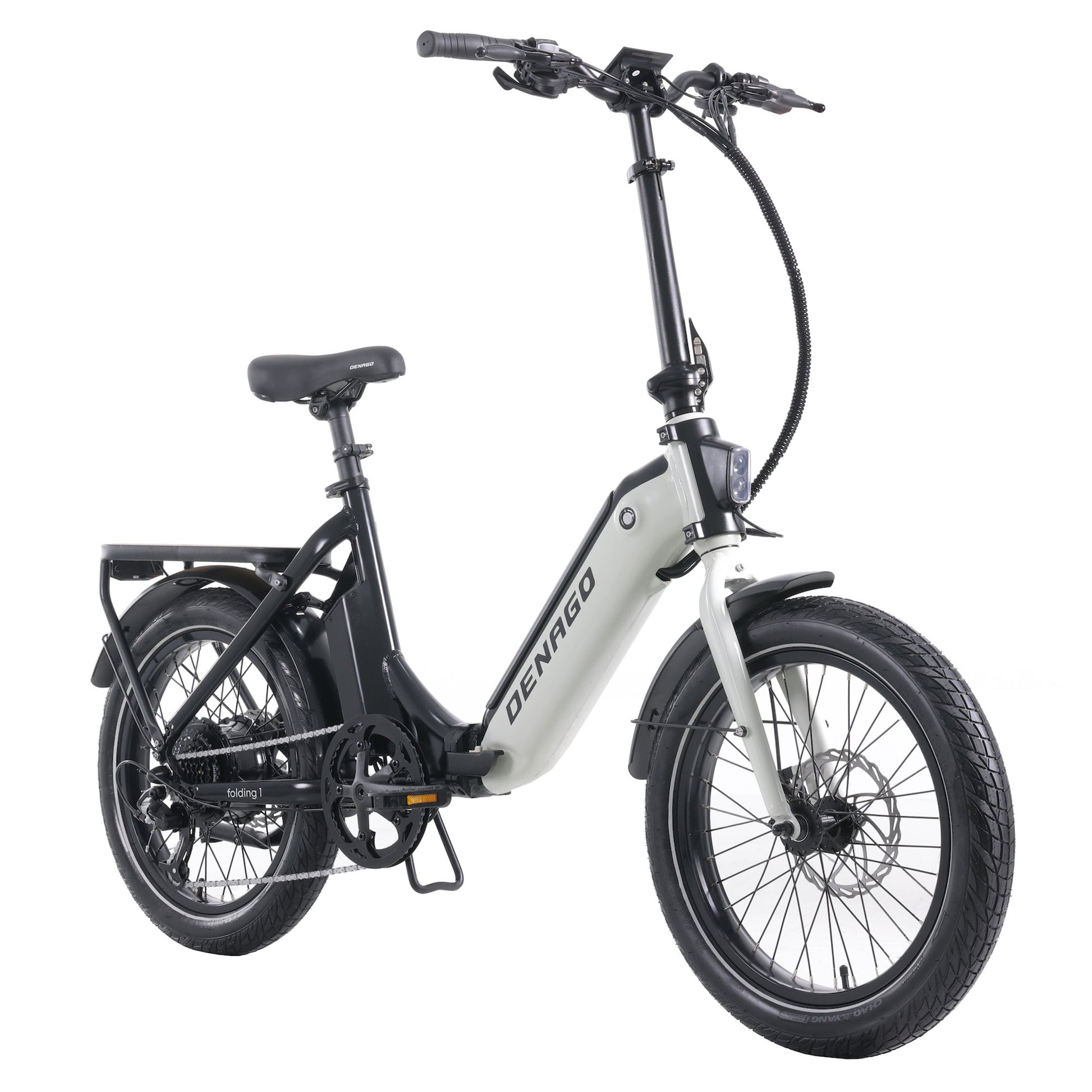

Denago's folding 1 eBike is easy to fold, transport, and park. Fits easily into the trunk of your car or a coat closet. Perfect for RV owners or van life.

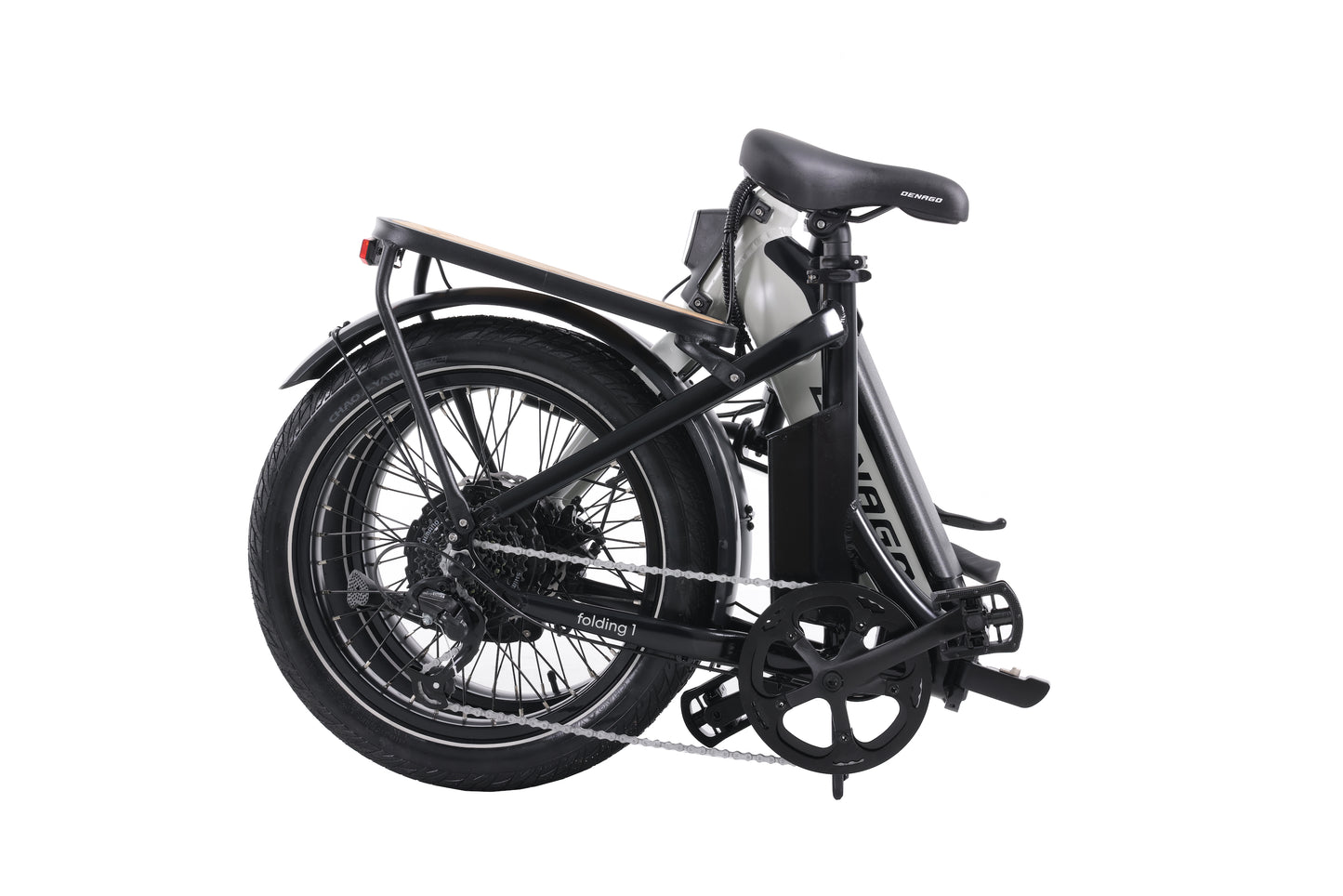

When folded, it fits into a compact space just 20" wide, 35" long, and 30" tall.
Folding design
Folds and unfolds in 30 seconds
20" x 3" tires
Comfort and grip
.png?v=1675450585443&options=){kind=icon}
Lithium-Ion battery
Locks w/key for security
.png?v=1675450638878&options=)
Integrated lights
Powered by the eBike battery
.png?v=1675450788127&options=){kind=icon}
Feature-packed
Includes rear rack and fenders
Designed in Texas
with USA-based support
.png?v=1675889340128&options=)
Disc brakes
Stopping power
.png?v=1675450931539&options=)
Digital handlebar display
Monitor speed, distance, charge level
500 Watt hub motor
Conquer hills
Denago Folding 1 eBike Features
-

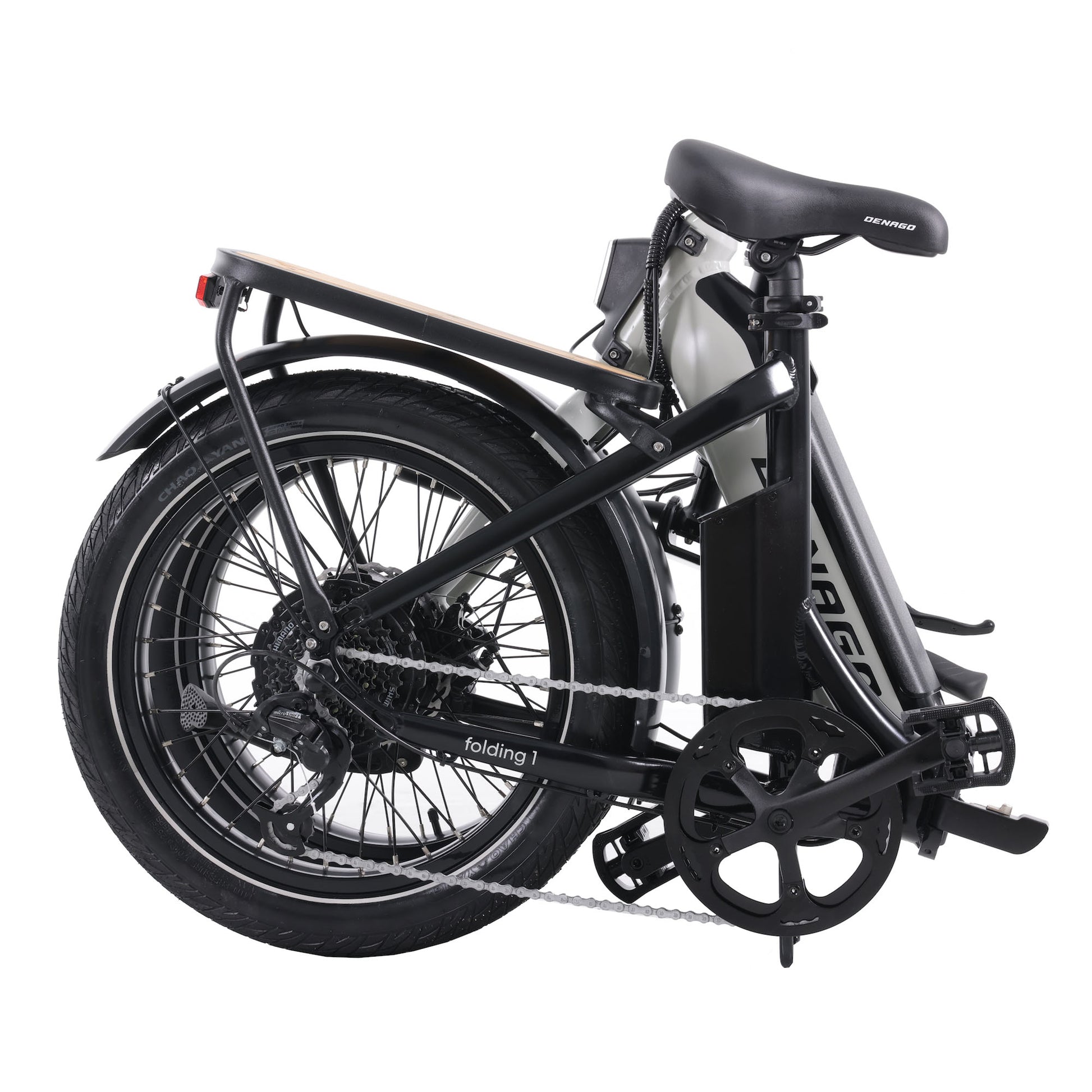

Folds for storage and transport
RV travelers, those living the "van life", and small apartment owners will love the Folding 1, which fits easily in a coat closet or car trunk.
-
One size fits almost everyone
With an ultra-low standover height and telescoping seatpost, our Folding ebike is easy to share with friends or family.
-
Built-in lights
Integrated front and rear lights are powered by the eBike battery. Control them from the handlebar remote.
-
Pedal assist and throttle modes
See speed, distance, battery charge, and more at a glance on the high-resolution display. Choose from pedal assist (up to 25 MPH) and throttle (20 MPH) modes.
-
Locking hidden Li-Ion battery
Our 672 Wh battery (48 volts, 14 Ah) is completely hidden inside the folding frame and locks with a key for security. We built it with quality LG cells and included a 3 Amp charger so you can recharge 50% faster than other brands.
-
500 watt hub motor
Powered by a lightweight 500 watt hub motor - plenty of torque for speed, while keeping things light enough to carry (complete bike 62 lbs)
Collapsible content
See Full eBike Features
Top Speed:
25 MPH on pedal assist, 20 MPH on throttle (Class III eBike)
Motor:
Shengyi rear hub, 48V, 500W
Battery:
672 Wh (48V, 14 Ah) with LG cells
Sensors:
Cadence, Speed
Throttle:
Thumb throttle, left side
Display:
Denago high-resolution LCD with speed, trip distance, odometer, trip time, battery charge level, and walk mode functions; plus integrated front and rear light controls.
Charger:
Multi-voltage 110-240V, 3A Fast Charger with USA plug
Safety Data Sheets (SDS):
Denago safety data sheets are available upon request via email.
Component Highlights
-
Packed with value
Includes beautiful rear rack with wood top, fenders, and kickstand (rack is not for passenger use.) There's even a convenient bell.
-
3" wide tires
3" wide tires are "just right" - wide enough for comfort, without knobs and extra weight slowing you down.
-
Folding pedals
We thought of everything! Saves every inch of space for maximum portability.
-
Powerful disc brakes
Folding 1 features mechanical disc brakes with oversized rotors for extra braking power; plus motor-interrupt switches for additional safety.
-
7 speed shifter and rear derailleur
Indexed "click" shifter and rear derailleur make changing gears easy. We included a wide gear range, so you're ready for uphill and down.
-
Padded saddle and telescoping seatpost
Ride in comfort with a wide, padded saddle. It sits atop a telescoping seatpost, providing a huge range of adjustment for rider height, while still collapsing down for portability.
Collapsible content
See Full Component Specifications
FRAME AND FORK
Frame:
6061-T6 Aluminum Alloy, Step-thru style, Folding
Fork:
Rigid
Kickstand:
included
DRIVETRAIN
Pedals:
Folding, 9/16” with reflectors
Crankset:
Aluminum alloy, 170mm, 48 tooth chainring, with chainguiard
Bottom Bracket:
Sealed, square taper, English thread
Rear Derailleur:
7 speed
Freewheel:
Shimano CS-HG200-7, 7 speed, 12-32 teeth
Shifter:
7 speed with optical gear display
Chain:
KMC Z7, 3/32”
COCKPIT
Handlebar:
Zoom, aluminum alloy, 25.4mm diameter, 620mm long
Grips:
Black rubber, lock-on style
Stem:
Zoom aluminum alloy, 25.4mm clamp, 1 ⅛” threadless, adjustable height, folding
Headset:
1 ⅛”, sealed, threadless
Saddle:
Denago Comfort
Seatpost:
Zoom aluminum alloy, 34.9mm diameter, 347-552mm telescopic
Seatpost Clamp:
Zoom, quick release
BRAKES
Levers:
Jak mechanical disc brake with motor cut-off
Calipers:
Jak mechanical disc brake
Rotors:
180mm, 6 bolt type
WHEELS
Tires:
20x3", anti-puncture, safety reflective stripe, eBike-rated
Tubes:
20x3", schrader valve
Rims:
Aluminum Alloy, 36 holes, 20"
Hubs:
Front - Joytech nutted, 36 holes, disc brake
Rear - Shengyi, nutted 36 holes, disc brake
Spokes:
Front - 36 Black 13 gauge spokes
Rear - 36 Black 12 gauge spokes
Nipples:
Brass
WEIGHT AND PAYLOAD
Complete eBike with battery:
62 lbs
Maximum rider weight:
300 lbs
Maximum cargo capacity:
35 lbs on the included rear rack
20 lbs on the optional head-tube mounted front rack, if installed
WHAT'S IN THE BOX
Complete eBike
Keys
Lithium-Ion battery
3 Amp fast charger
Quickstart guide
Wheel reflectors
Assembly Tools (pedal wrench, multi-tool)
COVID-19 has created specific challenges in the bicycle industry, especially around the availability of the components required to manufacture eBikes. As a result, we reserve the right to make substitutions of equivalent components of equal or better value to ensure we can consistently deliver our eBikes in a timely fashion. Thanks for understanding!
HOW IT FITS
-
Johnathan is 6'1" tall
Shown riding Folding 1, One Size
-
Tam is 5'2" tall
Shown riding Folding 1, One Size
Collapsible content
Full geometry chart and dimensions
Denago's size and fit recommendations
The Folding 1 fits most riders 5'1" - 6'5".
Always wear a helmet, and ride only where safe, legal, and appropriate.
SHIPPING, FINANCING, AND SAFETY
-
Always free shipping
Free standard shipping is available on all eBikes offered at Bike.com.
-
Fast delivery of your new eBike
Free standard shipping arrives anywhere in the 48 continental United States in just 1-5 business days.
-
Free subscription to Flare Premium
Learn more about FlareWe've partnered with Flare to provide a free 1 year subscription to their Premium safety and tracking app with every eBike sold.
Assembly options
-
Do it yourself
Assembly tools and instructions included with every eBike. Get free help from the Bike.com experts anytime.
-
Get help from a local bike shop via Beeline Connect
Choose a local bike shop to assemble and tune your new eBike. Additional charge applies. Learn more.
-
Order 2 and get free ready to ride delivery
Order 2 eBikes and we'll build and tune them, then deliver them to you ready to ride. Learn more.
Documents for the Denago Fat Tire Step-thru eBike
DOWNLOADS
Geometry Chart
Denago Folding 1 eBike Geometry
Last updated: Feb 7, 2023. (JPG)
Quick Start Guide
Denago Folding 1 eBike Quick Start Guide
Last updated: Feb 7, 2023. (PDF)
Owner's Manual
Denago Folding 1 eBike Owner's Manual
Last updated: Feb 3, 2023 (PDF)
Display Instructions
Denago Folding eBike K5242 Display Instructions
Last updated Feb 8, 2023 (PDF)
